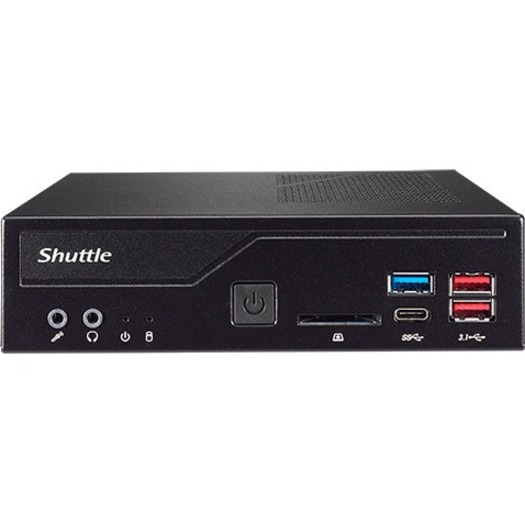

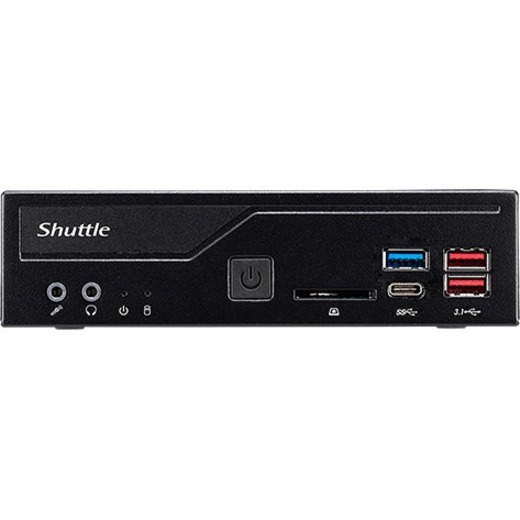

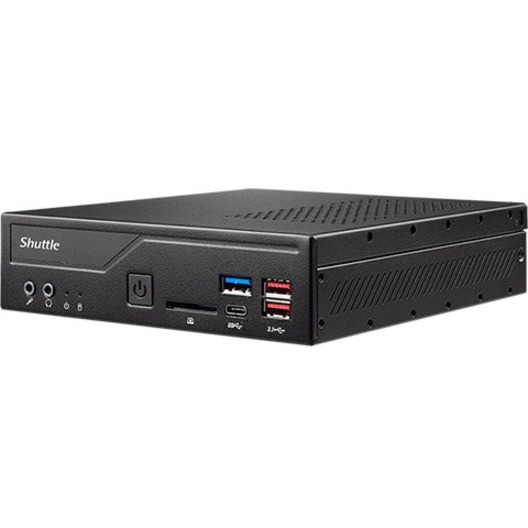

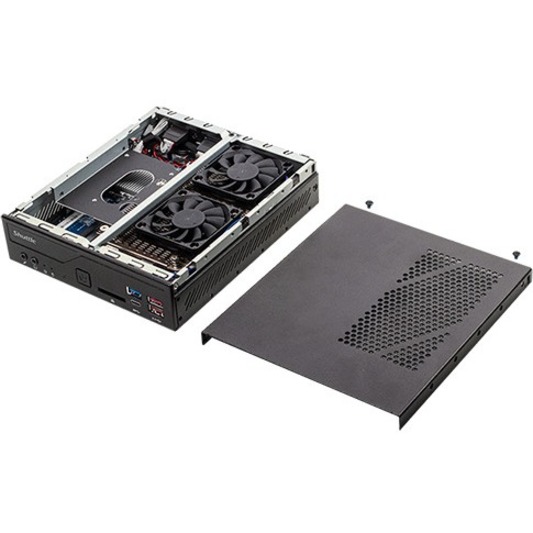

Shuttle XPC slim DH470 Barebone System Slim PC - Socket LGA-1200 - 1 x Processor Support - Intel H470 Chip - 64 GB DDR4 SDRAM DDR4-2933/PC4-23466 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 - Intel HD Graphics Integrated - 1 2.5" Bay(s) - 1 SATA Interface(s) - Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron) - Gigabit Ethernet - 3 USB 3.2 Gen 1 Port(s)90 W

Our Product No :   43235

MPN Number :   DH470

Manufacturer :  SHUTTLE

Model No :   DH470

images

Pre Order

General Information
Manufacturer Shuttle, Inc
Manufacturer Part Number DH470
Manufacturer Website Address http://www.shuttle.com
Brand Name Shuttle
Product Line XPC slim
Product Model DH470
Product Name XPC slim DH470 Barebone System
Marketing Information ROBUST 1.3-LITRE SLIMPC SUPPORTS INTEL "COMET LAKE-S" 10-CORE PROCESSORS AND THREE UHD DISPLAYS

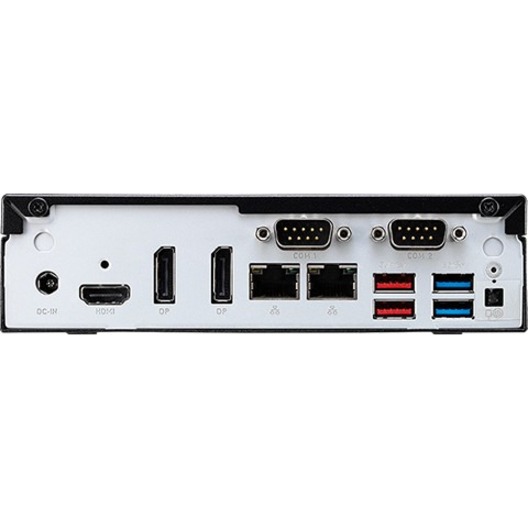

The Shuttle XPC slim Barebone DH470 with H470 chipset houses the performance of Intel's 10th generation Core desktop processors (codenamed Comet Lake-S) for socket LGA1200 in a compact 1.3-litre format. The DH470 allows for three Ultra HD displays to be operated at the same time via HDMI 2.0a and 2x DisplayPort. It also offers Dual Intel LAN, four USB 3.2 Gen 2 and COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.
Product Type Barebone System
Processor
Processor Socket Socket LGA-1200
Processor Supported
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Pentium Gold
  • Celeron
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model H470
Memory
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2933/PC4-23466
Controllers
Controller Type Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer Intel
Graphics Controller Model HD Graphics
Graphics Memory Technology DDR4 SDRAM
Graphics Memory Accessibility Shared
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Interfaces/Ports
HDMI (Rear) Yes
USB Type-C (Front) Yes
USB Type-C Detail 1x Type-C
Software
Operating System Supported
  • Windows 10 x64
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage 90 W
Physical Characteristics
Colour Black
Form Factor Slim PC
Height 43 mm
Width 165 mm
Depth 190 mm
Weight (Approximate) 1.30 kg
Miscellaneous
Energy Star Yes
Environmentally Friendly Yes
