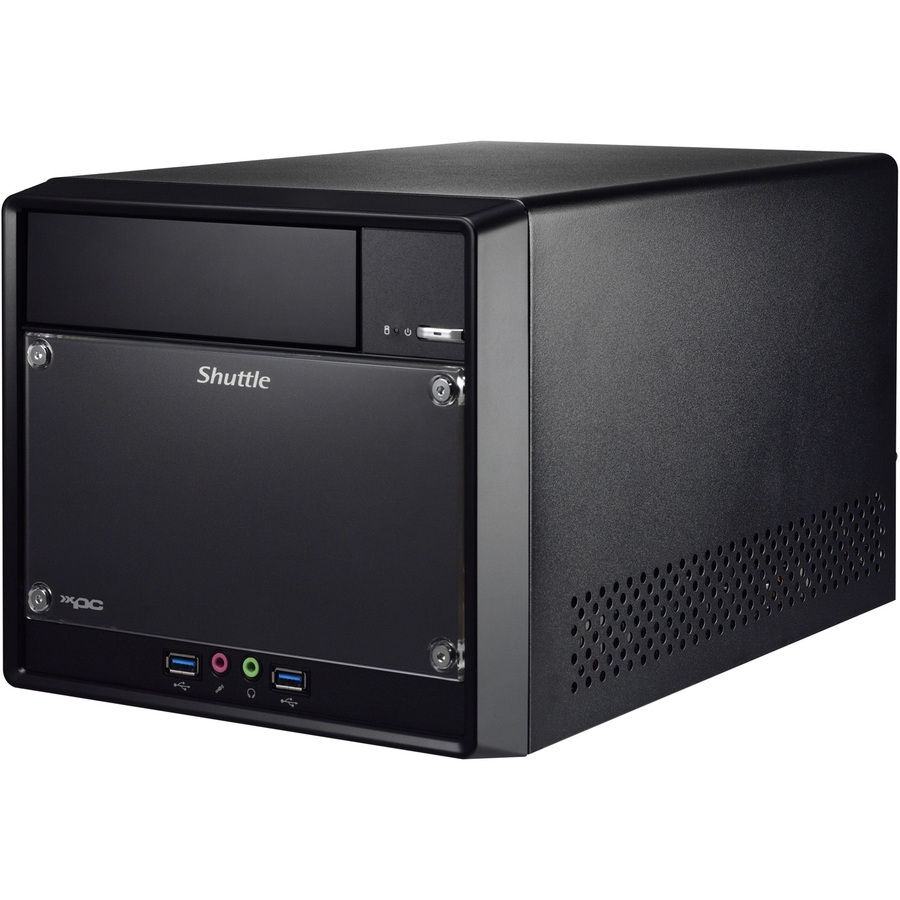

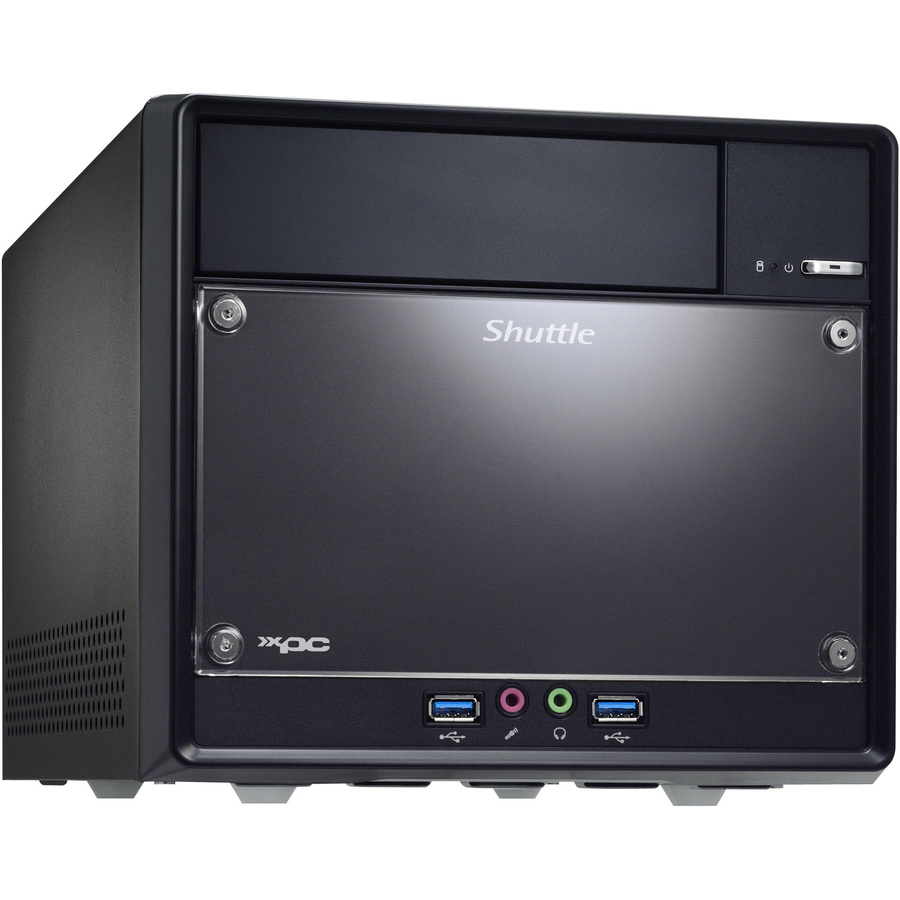

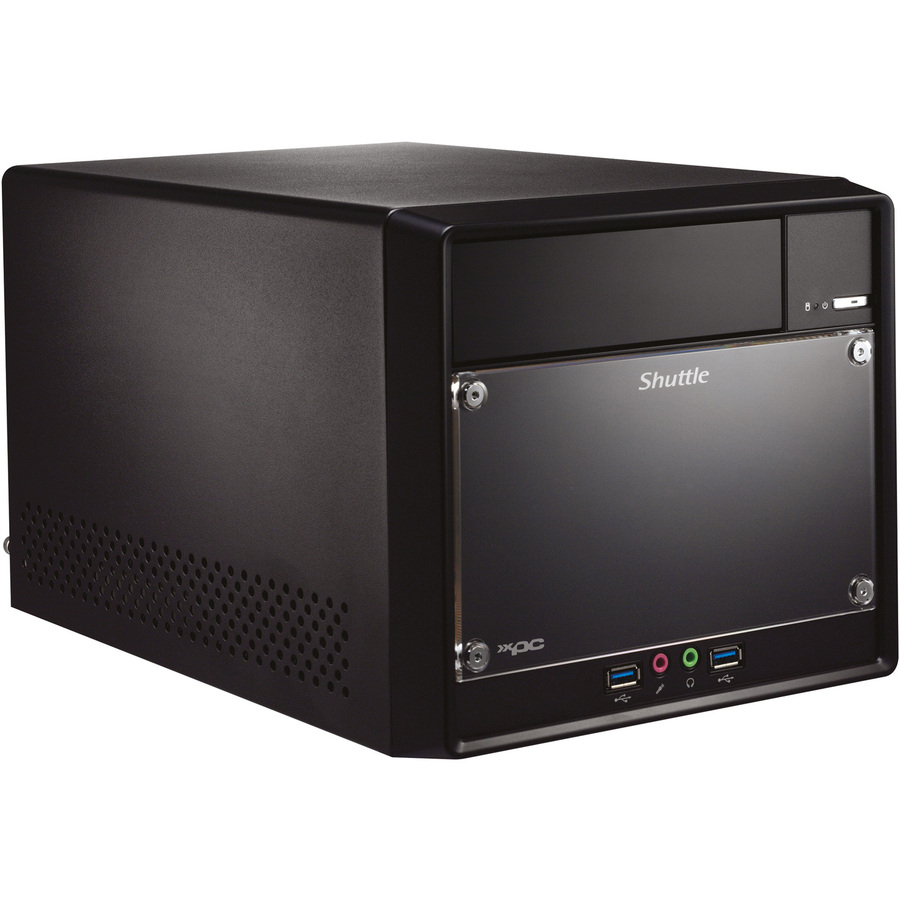

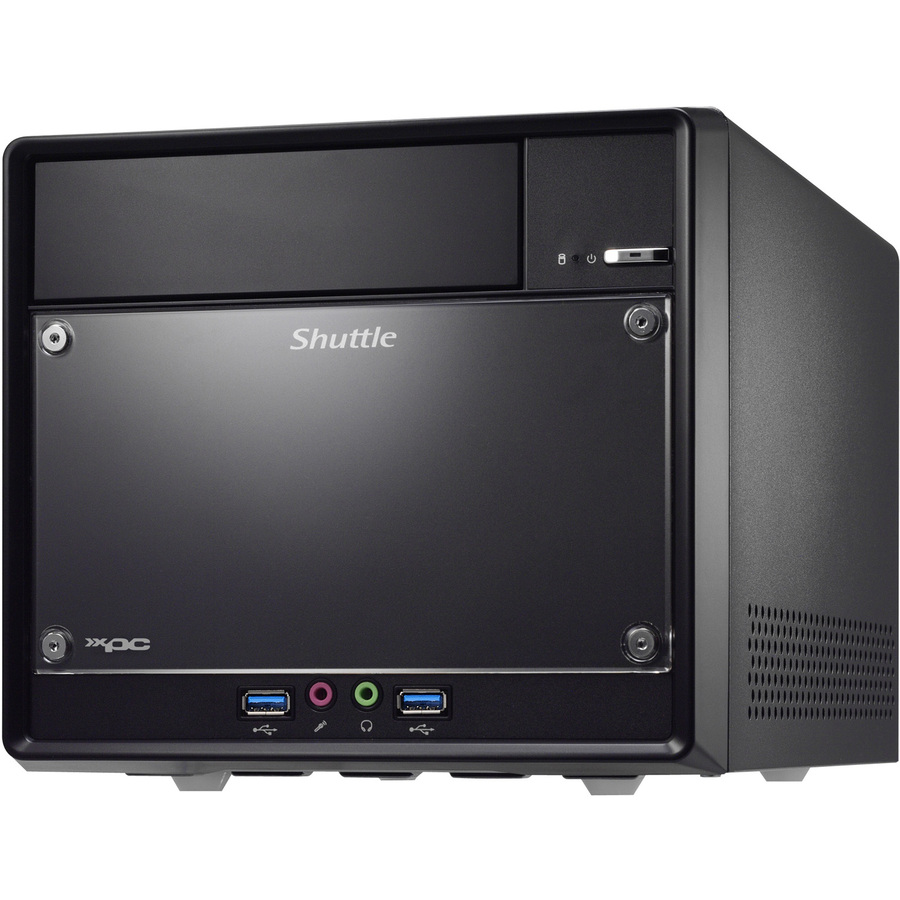

Shuttle XPC cube SH310R4 V2 Barebone System Small Form Factor - Socket H4 LGA-1151 - Intel H310 Chip - 32 GB DDR4 SDRAM DDR4-2666/PC4-21300 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 - Intel UHD Graphics Integrated - 2 3.5" Bay(s) - 3 SATA Interface(s) - Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium, Celeron) - Gigabit Ethernet - 4 USB 3.0 Port(s)300 W

Our Product No :   43254

MPN Number :   SH310R4V2

Manufacturer :  SHUTTLE

Model No :   SH310R4 V2

images

Pre Order

General Information
Manufacturer Shuttle, Inc
Manufacturer Part Number SH310R4V2
Manufacturer Website Address http://www.shuttle.com
Brand Name Shuttle
Product Line XPC cube
Product Model SH310R4 V2
Product Name XPC cube SH310R4 V2 Barebone System
Marketing Information

Get Performance and Affordability: New Expandable Entry Level Mini Cube

With the new SH310R4 V2, you can take full advantage of the performance and affordability in an expandable mini PC. Shuttle SH310R4 V2 is an entry-level mini PC supporting Intel Core processor of the 8/9th Gen. Featuring up to 8 cores of processing performance and integrated UHD graphics, the SH310R4 V2 has more power to handle demanding 4K workflows. With options for HDMI, DP and VGA outputs, users can gain better flexibility for simultaneous dual displays. Despite its seeming small chassis, there is enough room to accommodate up to 32GB of DDR4 memory, a fast M.2 SSD, a dual-slot graphics card, and even three storage drives. As desired, the front panel can also be fully customized to your needs.

Intel® 8/9th Generation Processors

The SH310R4 V2 is designed with Intel® H310 chipset and available with the 8/9th Gen Intel® Core™, Pentium® and Celeron® processors in the LGA1151v2 package. With new processors up to 6 cores, the platform supports up to 32GB (16GB x 2) of DDR4-2666 memory, integrated UHD graphics and PCI-E controllers to support onboard graphics output for outstanding graphics performance.

Dual Display Productivity

Simultaneously support for dual displays with built-in HDMI, DisplayPort and VGA outputs, the SH310R4 V2 meets the productivity benefits and provides dynamic visualization for multitasking and digital signage applications.

Superb PCI-E Scalability

The SH310R4 V2 provides one PCI-E x16 3.0 slot and one PCI-E x1 2.0 slot for multiple expansion cards support. Select the card you want to use, such as multi-display graphic cards, monitor cards, RAID cards, and professional sound cards for video wall, file server, network video recorder, and more applications.

Exclusive Cooling Technology

The SH310R4 V2 features Shuttle's exclusive heat-pipe cooling system with smart fan design. The clever ventilation design allows for constant air circulation between the inside and outside of the machine resulting in high stability and low noise for long-term operation.

24/7 Nonstop Operation

Officially approved for 24/7 permanent operation. Thanks to Shuttle's low power consumption design and stable operation, the SH310R4 V2 runs highly reliable and meets the long-run demands of computing work.

The Watchdog

Watchdog Timer provides excellent security protection for systems that need to operate continuously for a long period of time. Use Shuttle's Watch Dog utility to maintain normal operation and stability of the system at all times.

4K UHD Experience with HDMI 2.0a

The SH310R4 V2 features one HDMI (version 2.0a) output to support 4K resolution (4096 x 2160) at a maximum of 60FPS as well as transmission of high dynamic range (HDR) video, which allows viewers to enjoy the vivid streaming, higher contrast ratio, and more accurate color from HDR-compatible displays and TVs.

High Storage Capacity with M.2

With native M.2 2280 key M and one M.2 2230 key E slots, the SH310R4 V2 offers considerably faster storage performance and expansion capacity for M.2 SSD and Wi-Fi modules.

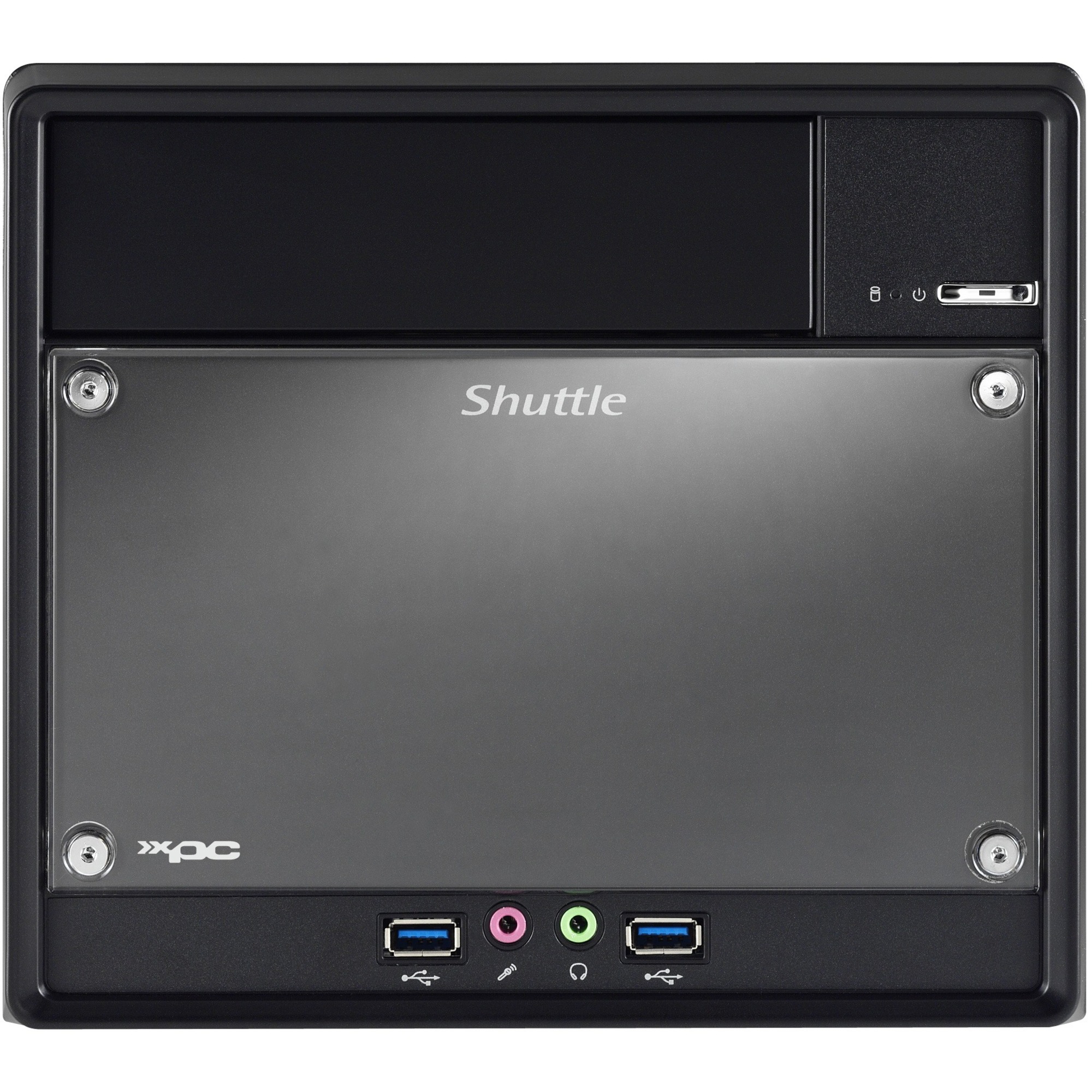

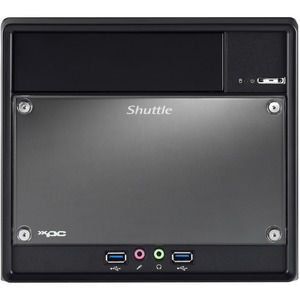

Customizable Front Panel

The front of SH310R4 V2 chassis is easily customized by simply changing the acrylic front plate. Add any design, such as a photo, graphic, or a company logo to the front panel.

Product Type Barebone System
Processor
Processor Socket Socket H4 LGA-1151
Processor Supported
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Pentium
  • Celeron
64-bit Processing Yes
Chipset
Chipset Manufacturer Intel
Chipset Model H310
Memory
Maximum Memory Supported 32 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-2666/PC4-21300
Controllers
Controller Type Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Interfaces/Ports
Software
Operating System Supported
  • Windows 10 x64
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage 300 W
Physical Characteristics
Colour Black Aluminum
Form Factor Small Form Factor
Height 197.9 mm
Width 215.9 mm
Depth 330.2 mm
Weight (Approximate) 3.40 kg
Miscellaneous
Energy Star Yes
Environmentally Friendly Yes
