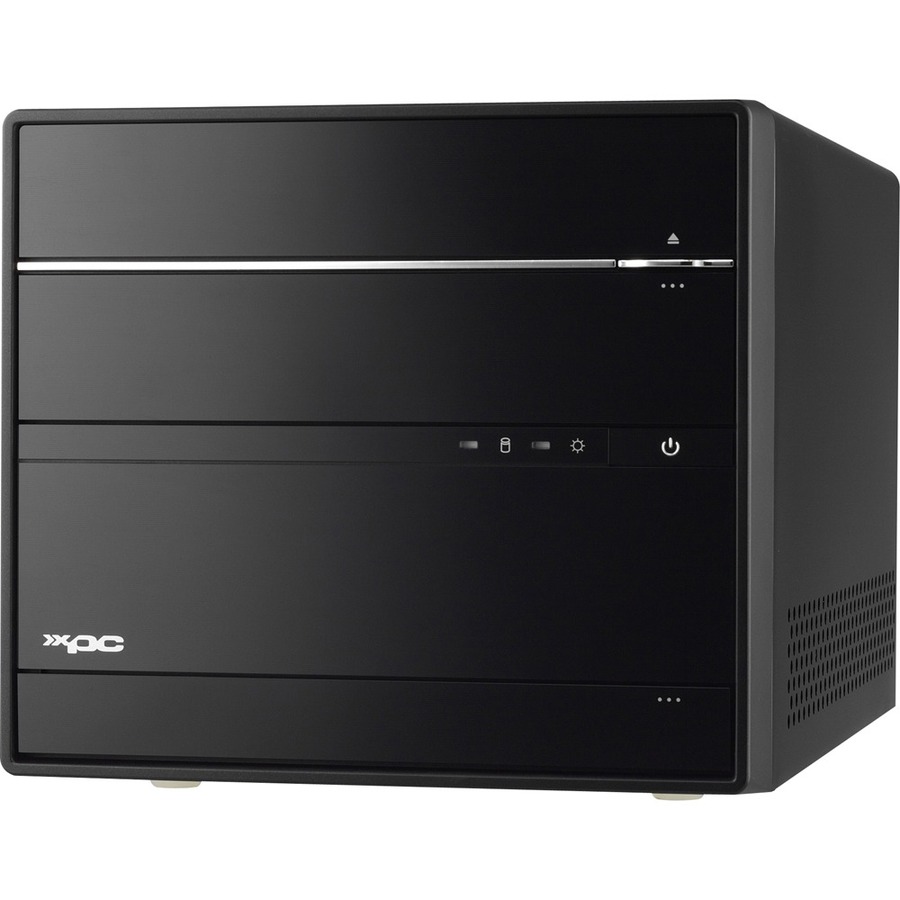

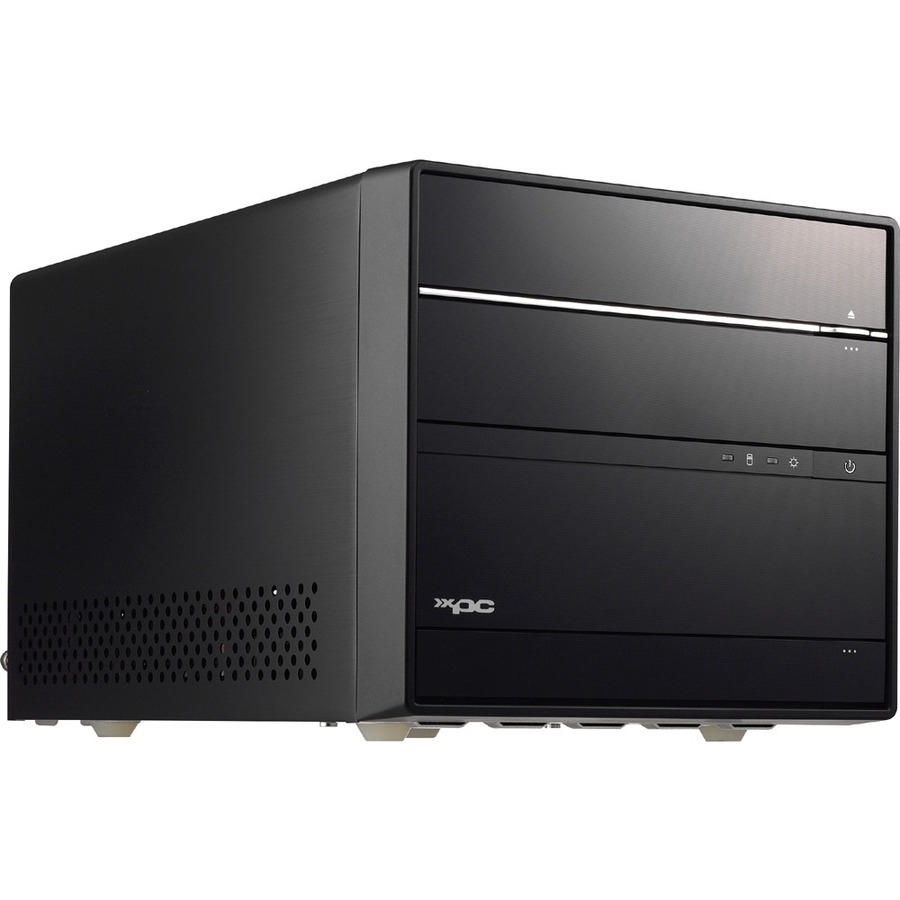

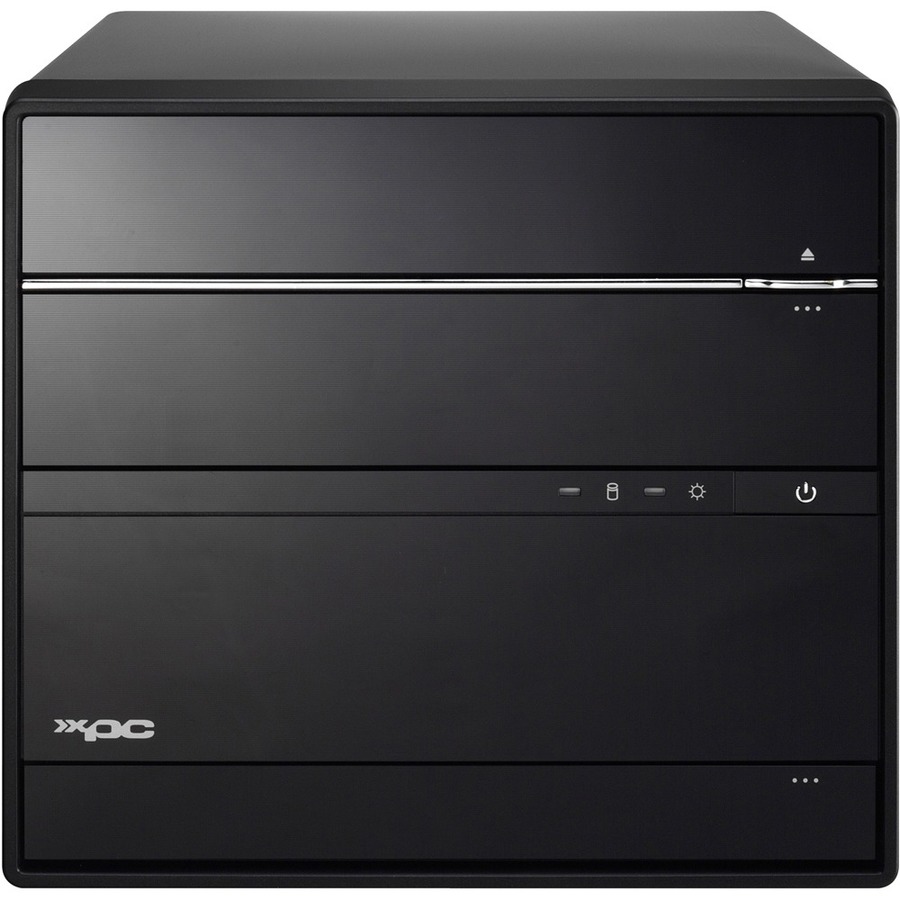

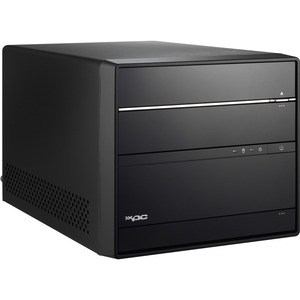

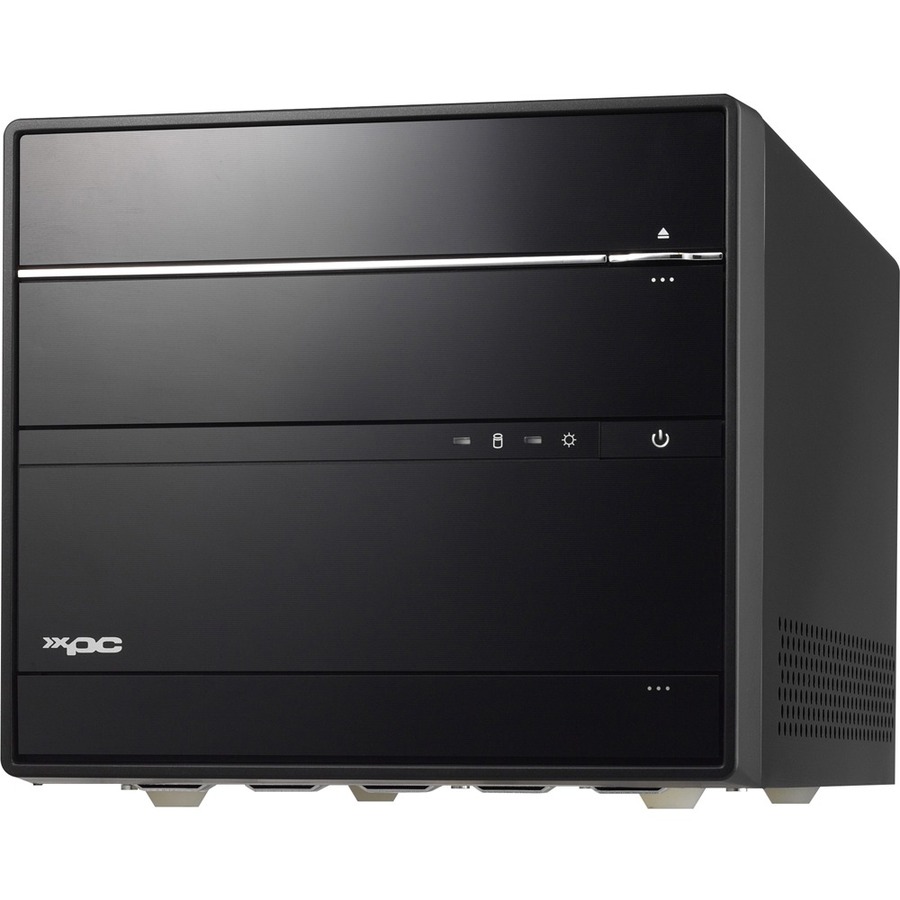

Shuttle XPC cube SH570R6 Plus Barebone System - Socket LGA-1200 - Intel H570 Chip - 128 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 4 Total Memory Slots - Serial ATA/600 Controller - Intel UHD Graphics Graphic(s) - 2 3.5" Bay(s) - 4 SATA Interface(s) - Processor Support (Core i9, Core i7, Core i5, Core i3, Pentium Gold, Celeron) - Gigabit Ethernet - Windows 10, Windows 11, Linux Supported Operating System - 3 USB 3.2 Gen 1 Port(s) - 500 W

Our Product No :   45347

MPN Number :   SH570R6 PLUS

Manufacturer :  SHUTTLE

Model No :   SH570R6 Plus

images

Pre Order

General Information
Manufacturer Shuttle, Inc
Manufacturer Part Number SH570R6 PLUS
Manufacturer Website Address http://www.shuttle.com
Brand Name Shuttle
Product Line XPC cube
Product Model SH570R6 Plus
Product Name BAREBONE XPC cube SH570R6 Plus
Marketing Information SUPPORTS 10TH/11TH GENERATION INTEL CORE PROCESSORS AND UP TO THREE UHD DISPLAYS

The Shuttle XPC Barebone SH570R6 PLUS shows how discreet a modern PC can look and at the same time how powerful it can be. Its black-brushed aluminium case has barely a volume of 14 litres, but packs everything you need for a high-performance workstation for example. This includes the power of 10th/11th gen. Intel Core processors ("Comet Lake-S" and "Rocket Lake-S"), a dual-slot graphics card, fast M.2 NVMe SSD drives, two 3.5'' hard drives in RAID and up to 128 GB of DDR4 memory, plus an optical drive. Even without a dedicated graphics card, up to three UHD displays are supported (if not an F-type CPU is used).
Product Type Barebone System
Processor
Processor Socket Socket LGA-1200
Processor Supported
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Pentium Gold
  • Celeron
Chipset
Chipset Manufacturer Intel
Chipset Model H570
Memory
Maximum Memory Supported 128 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Controllers
Controller Type Serial ATA/600
Display & Graphics
Graphics Controller Manufacturer Intel
Graphics Controller Model UHD Graphics
Graphics Memory Technology DDR4 SDRAM
Graphics Memory Accessibility Shared
Network & Communication
Ethernet Technology Gigabit Ethernet
I/O Expansions
Interfaces/Ports

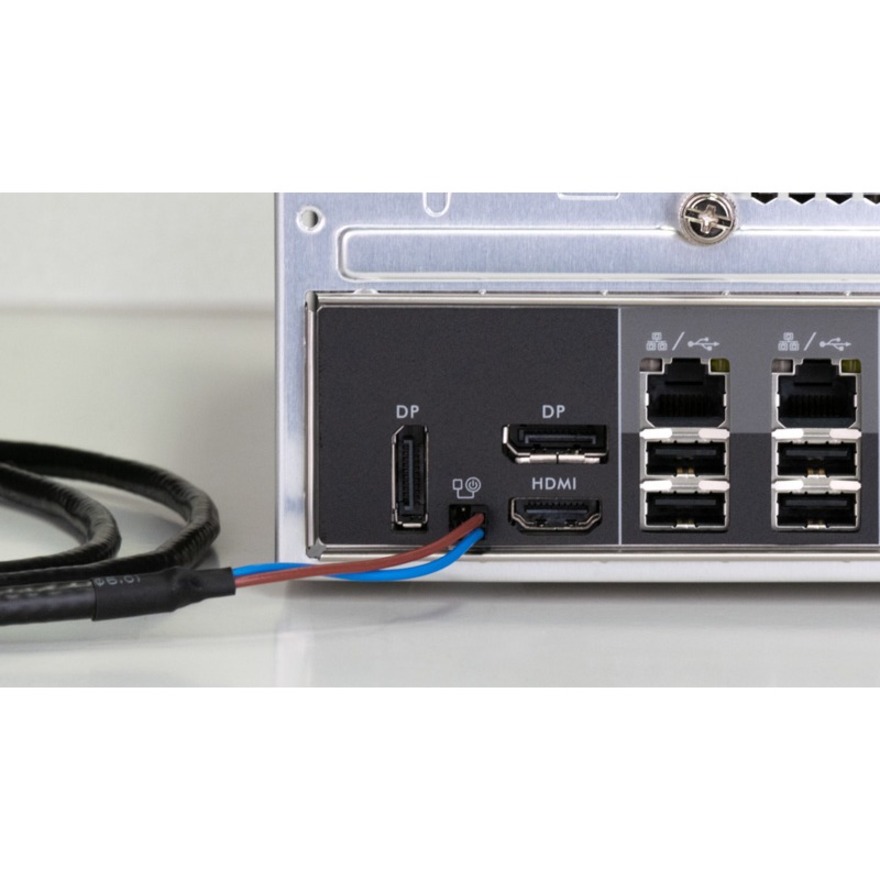

HDMI (Rear) Yes
Total Number of USB Ports 13
USB Type-C (Front) Yes
USB Type-C Detail USB 3.2 Gen Type-C port (5 Gbps)
Operating System
Operating System Supported
  • Windows 10
  • Windows 11
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage 500 W
Physical Characteristics
Product Color Black Aluminum
Height 190 mm
Width 215 mm
Depth 332 mm
Weight (Approximate) 3.50 kg
Miscellaneous
Energy Star Yes
Environmentally Friendly Yes
