Shuttle XPC slim DH610 Barebone System - Slim PC - Socket LGA-1700 - 1 x Processor Support - Intel H610 Chip - 64 GB DDR4 SDRAM DDR4-3200/PC4-25600 Maximum RAM Support - 2 Total Memory Slots - Serial ATA/600 Controller - HD Graphics Graphic(s) - Processor Support (Core i9, Pentium Gold, Celeron) - 2.5 Gigabit Ethernet, Gigabit Ethernet - Windows 10 x64, Windows 11 x64, Linux Supported Operating System - 3 USB 3.2 Gen 1 Port(s) - 120 W - 2 Year

Our Product No :   47471

MPN Number :   DH610

Manufacturer :  SHUTTLE

Model No :   DH610

images

STOCK 6

General Information
Manufacturer Shuttle, Inc
Manufacturer Part Number DH610
Manufacturer Website Address http://www.shuttle.com
Brand Name Shuttle
Product Line XPC slim
Product Model DH610
Product Name XPC slim DH610 Barebone System
Marketing Information

Robust 1.3-litre Slim PC supports Intel Core Gen. 12 processors "Alder Lake-S" and two UHD displays

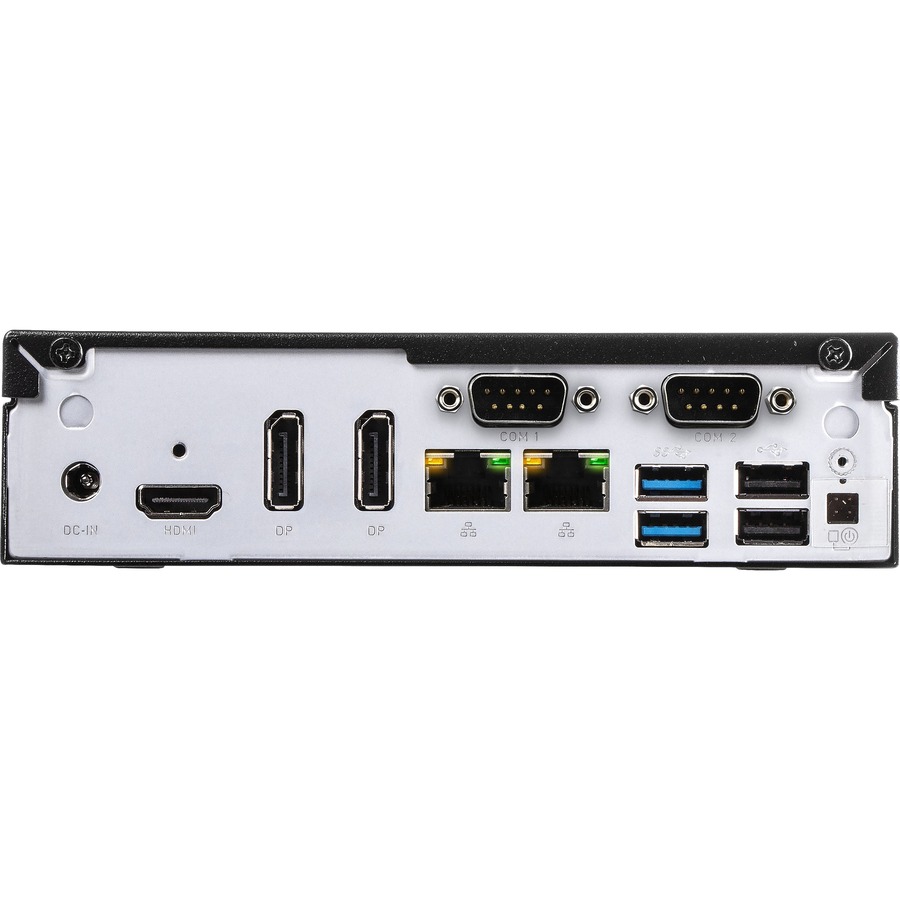

The Shuttle XPC slim Barebone DH610 with H610 chipset houses the performance of Intel's 12th generation Core desktop processors (codenamed Alder Lake-S) for socket LGA1700 in a compact 1.3-litre format. The DH610 allows for three Ultra HD displays to be operated at the same time via 1x HDMI and 2x DisplayPort. It also offers Dual Intel LAN (one supports 2.5G speed), eight USB ports and two COM ports. The slim metal chassis comes with a VESA mount included, provides versatile connectivity and reliable operation in environments with ambient temperatures of up to 50 °C. This platform is targeted at professional applications such as Digital Signage, POS, POI, gambling machines, office, healthcare and industry.

Product Type Barebone System
Processor
Processor Socket Socket LGA-1700
Processor Supported
  • Core i9
  • Core i7
  • Core i5
  • Core i3
  • Pentium Gold
  • Celeron
Chipset
Chipset Manufacturer Intel
Chipset Model H610
Memory
Maximum Memory Supported 64 GB
Memory Technology DDR4 SDRAM
Memory Standard DDR4-3200/PC4-25600
Controllers
Controller Type Serial ATA/600
Display & Graphics
Graphics Controller Model HD Graphics
Graphics Memory Technology DDR4 SDRAM
Graphics Memory Accessibility Shared
Network & Communication
Ethernet Technology
  • 2.5 Gigabit Ethernet
  • Gigabit Ethernet
I/O Expansions
Interfaces/Ports
HDMI (Rear) Yes
USB Type-C (Front) Yes
USB Type-C Detail 1 x USB 3.2 Gen 1 Type-C
Operating System
Operating System Supported
  • Windows 10 x64
  • Windows 11 x64
  • Linux
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Maximum Power Supply Wattage 120 W
Physical Characteristics
Color Family Black
Product Color Black
Form Factor Slim PC
Height 43 mm
Width 165 mm
Depth 190 mm
Weight (Approximate) 1.30 kg
Miscellaneous
Energy Star Yes
Warranty
Limited Warranty 2 Year
Additional Warranty Information 2 Year Return to Base
