AXAGON Data Transfer Adapter - 1 x M.2 - Female - 1 x USB 3.2 (Gen 2) Type C - Male

Our Product No :   54814

MPN Number :   ADM2-CM

Manufacturer :  AXAGON

images

STOCK 20

General Information
Manufacturer AXAGON
Manufacturer Part Number ADM2-CM
Manufacturer Website Address www.axago.cz
Brand Name AXAGON
Product Name USB-C 10Gbps - M.2 NVMe & SATA SSD Adapter
Marketing Information

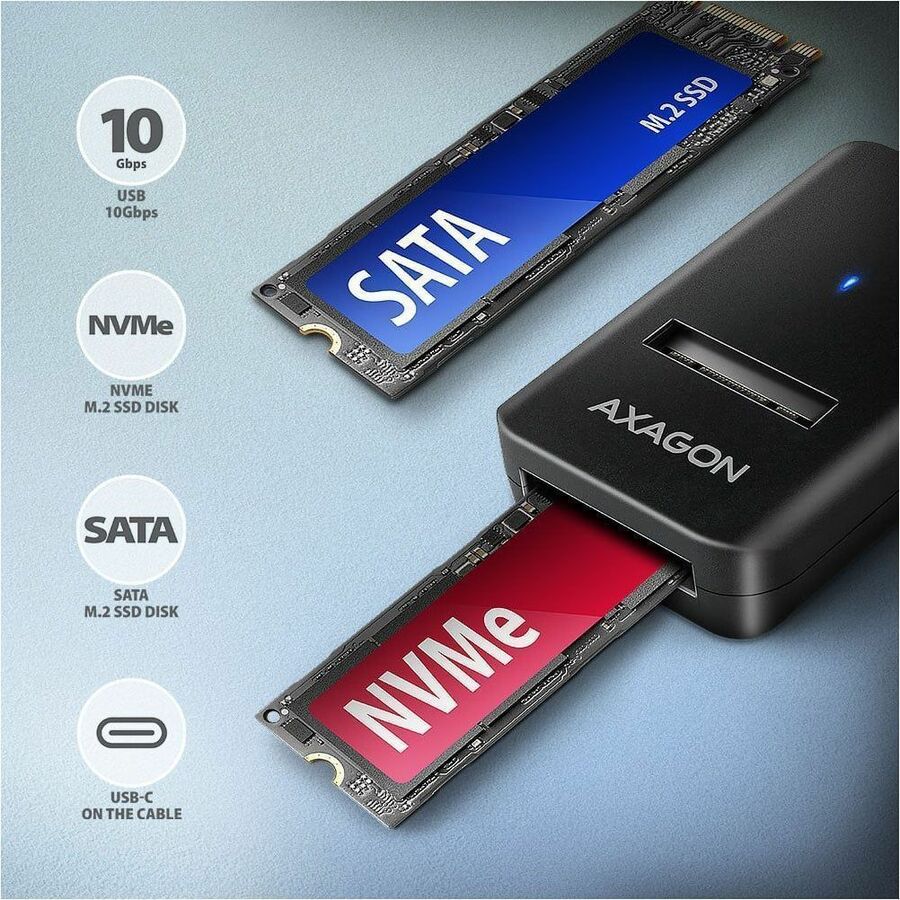

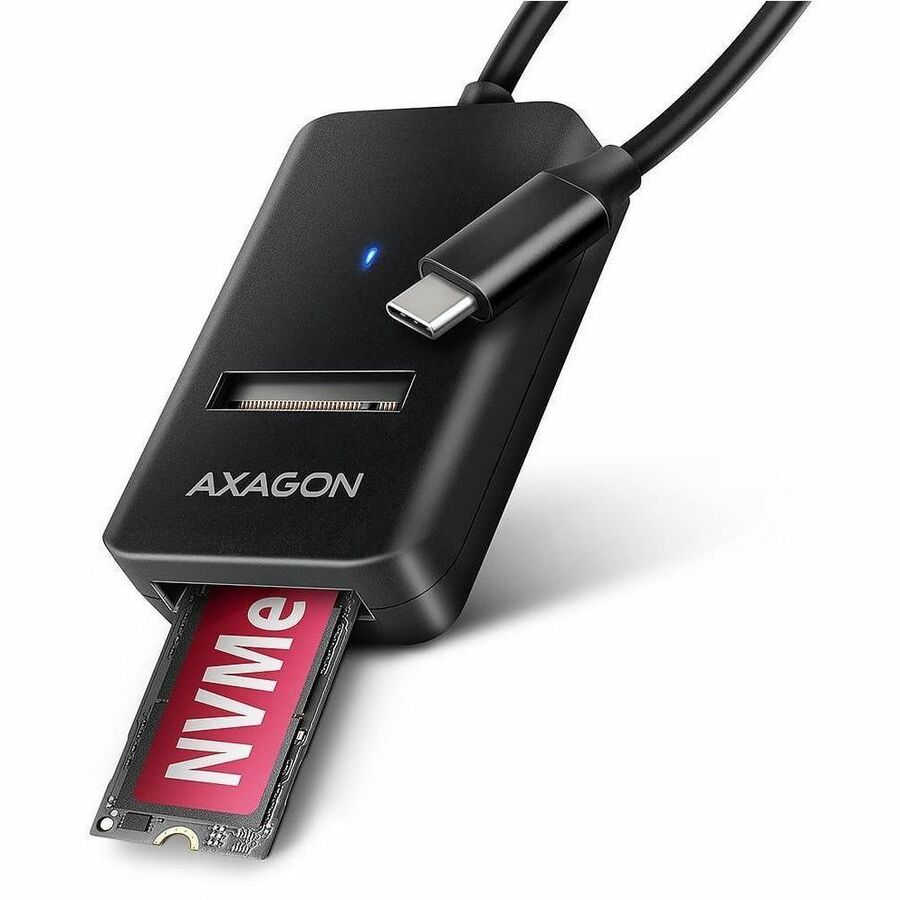

Compact AXAGON ADM2-CM M.2 adapter with USB 10Gbps interface designed for easy use of M.2 NVMe or SATA SSDs. Reliable connection to a computer is possible thanks to a fixed USB-C cable with a length of 10 cm.

The transmission rate is up to 10Gb/s thanks to the fast USB 3.2 Gen 2 interface. The second generation of fast USB interface allows you to enjoy the speed of modern M.2 SSD drives. The universal M.2 adapter also supports other modern features such as. UASP, TRIM and enables reading S.M.A.R.T. disk status monitoring information. Standby support when idle.

A unique feature, thanks to the new chipset, is the possibility of using both M.2 NVMe and SATA disks. You don't have to think about which type of M.2 drive the adapter is designed for, it simply reads all types. Another advantage of the adapter is the ability to insert the disc into the adapter slot very quickly. Changing discs is also easy. These features make the adapter a very handy and useful tool for frequent work with different types of drives. This makes it an ideal tool for testing disks, transferring, backing up and restoring data, etc.

Thanks to its small size, it can be readily at hand at any time. The adapter does not prevent heat dissipation from the disk, this prolongs its lifetime and also prevents the disk from slowing down the speed of the disk, so-called. "Thermal Throttling". This USB-C to M.2 drive adapter can be used with computers and laptops as well as mobile phones and tablets.

Input:

  • USB 10Gbps (USB 3.2 Gen 2), connector USB-C male.
  • Compatible with USB 3.2 Gen 1, USB4 and Thunderbolt 3/4.

Device support:

  • NMVe M.2 SSD disks,
  • SATA M.2 SSD disks,
  • designed for M key or B+M key card formats,
  • NGFF 75-pin M key slot for M.2 drives.

Other features:

  • Supports transmission rates 10.000 / 5.000 / 480 Mbit/s.
  • Support of M key or B+M key NVMe (PCI-Express) and SATA (AHCI) M.2 SSDs without maximum capacity limitation.
  • Support for M.2 drive sizes - no length restrictions.
  • Support of both one-sided and double-sided M.2 SSDs.
  • Compliant with PCI Express Base Specification Revision 3.1a specification.
  • Compliant with NVM Express 1.3 specification.
  • Compliant with Serial ATA 3.2 specification (SATA/600), bit rates of up to 6 Gb/s (600 MB/s).
  • Compliant with USB Mass Storage Class specification.
  • The total bandwidth / transmission rate of the adapter is determined by the USB interface used (theor. 10 Gbit/s).
Product Type Data Transfer Adapter
Technical Information
Adapter Type M.2/USB-C
Connector Type on First End M.2
Connector on First End Details 1 x M.2 - Female
Connector Type on Second End USB 3.2 (Gen 2) Type C - Male
Connector on Second End Details 1 x USB 3.2 (Gen 2) Type C - Male
Features
  • Plug and Play
  • LED Indicator
Physical Characteristics
Weight (Approximate) 19 g
Miscellaneous
Package Contents
  • M.2 Adapter with 10 cm Fixed Cable
  • Multilingual Manual CZ / DE / DK / ENG / ESP / EST / FIN / FR / GR / HR / HU / IT / LT / LV / NL / NOR / PL / PT / RO / SK / SLO / SRB / SWE / TR / UA / ALB / BG / BOS / CN / ARA
  • Packed in a Cardboard Box with Hanging Hole
Warranty
Limited Warranty 24 Month
