AXAGON HMC-4KX3 USB 3.2 (Gen 1) Type C Docking Station for Notebook, Smartphone, Desktop PC, TV, Mobile Device, iPhone - Charging Capability - Memory Card Reader - SD, SDXC, SDHC, microSDHC - Desktop - 3 Displays Supported - 4K @30Hz, 4K @ 60Hz, 2K @ 144Hz, FHD @ 240Hz, 4K UHD, 4K, WQHD @ 144Hz, 2K @ 165Hz, WQHD @ 165Hz, FHD @ 144Hz - 4096 x 2160, 2560 x 1440, 1920 x 1080 - 4 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - Network (RJ-45) - HDMI - Displ

Our Product No :   54862

MPN Number :   HMC-4KX3

Manufacturer :  AXAGON

Model No :   HMC-4KX3

images

STOCK 2

General Information
Manufacturer AXAGON
Manufacturer Part Number HMC-4KX3
Manufacturer Website Address www.axago.cz
Brand Name AXAGON
Product Model HMC-4KX3
Product Name HMC-4KX3 USB-C 5Gbps Triple 4K DIsplay 11in1 Hub
Marketing Information

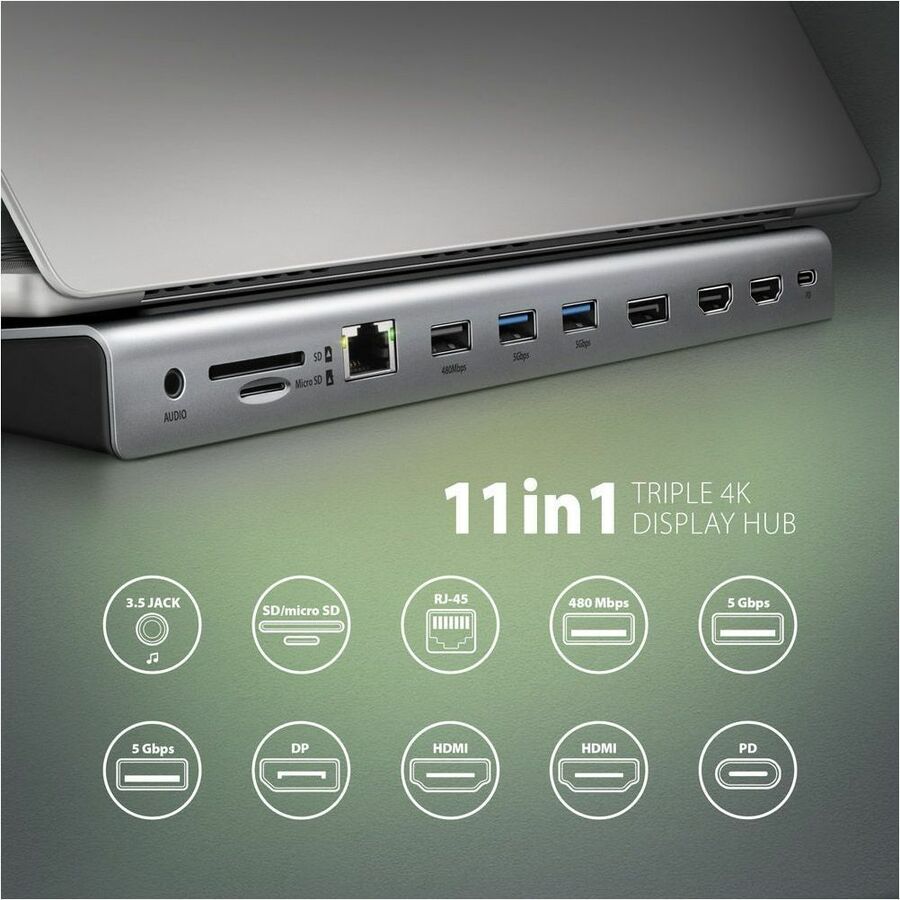

Multiport USB-C 5Gbps TRIPLE 4K DISPLAY hub AXAGON HMC-4KX3 expands your laptop with nine ports and memory card reader SD / microSD. You can easily and quickly connect up to three monitors, three USB devices, a Gigabit Ethernet network, headphones and card reader to your computer at the same time via the double-sided USB-C connector. You also get the possibility to supply laptop using Power Delivery technology at the same time. The USB-C hub will provide you with a universal and powerful 11in1 docking station for modern laptops.

The USB hub offers three USB outputs with standard USB-A connectors. The hub can also handle permanent connection of several external drives simultaneously. Transfer rate up to 5Gb/s thanks to the fast USB 3.2 Gen 1 interface. The hub will also enable charging of phones and tablets with a current of up to 1.5A/5V, so you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc.

The USB-C connector is reserved only for powering and simultaneous charging of laptops using Power Delivery 3.0 technology with a power of up to 100W. Connect the USB-C Power Delivery charger to the hub and connect the hub to the laptop. This saves one USB-C port. The condition is a laptop with Power Delivery charging support from the USB-C port and a suitable PD charger.

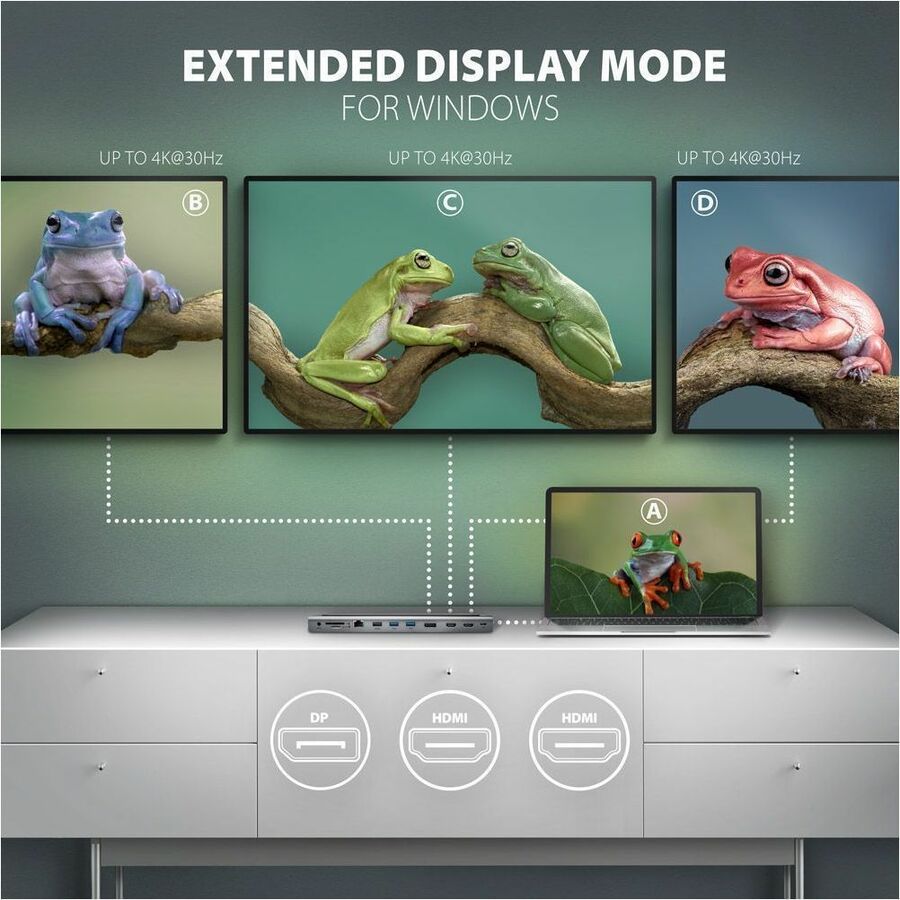

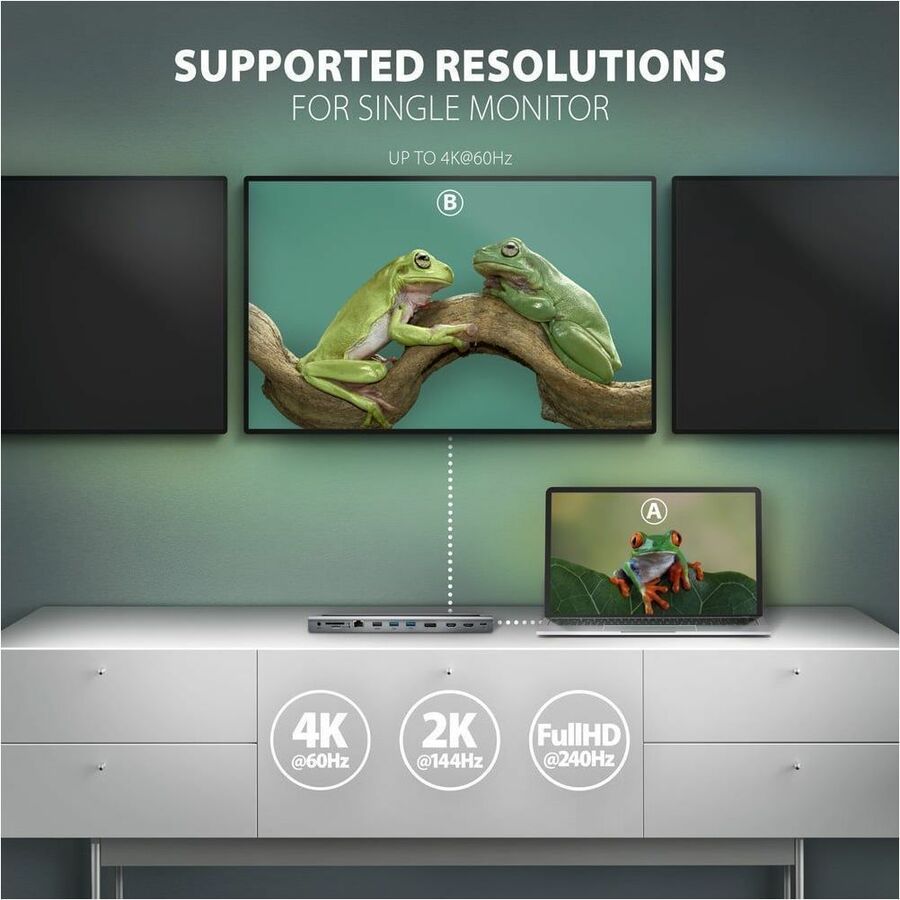

Each of the three video outputs (2x HDMI + 1x DisplayPort) provides a high-quality image up to 4K/60Hz Ultra HD resolution. High frequencies at popular gaming resolutions of 2K/144Hz or FullHD/240Hz are also supported. Even when three monitors are connected at the same time, the docking station can provide a resolution of up to 4K/30Hz on each of them. Thanks to HDR (high dynamic range) support, you can enjoy a significantly expanded range of colors and contrasts without restrictions. DisplayPort Alternate Mode (DP Alt Mode) enabled USB-C port or Thunderbolt 3/4 port is necessary for the proper function of video output. Support for the above max. supported resolutions and frequencies requires connection to a computer with DisplayPort version 1.4.

Gigabit network card extends your computer by a fast network connection, adds the missing RJ-45 network connector or another network card.

Card reader supports all current versions of SD and microSD cards including SDXC and microSDXC with capacity up to 2TB. High data transfer speed ensured by USB 3.2 Gen 1 interface. The card reader enables simultaneous handling of cards in both slots and direct copying between them.

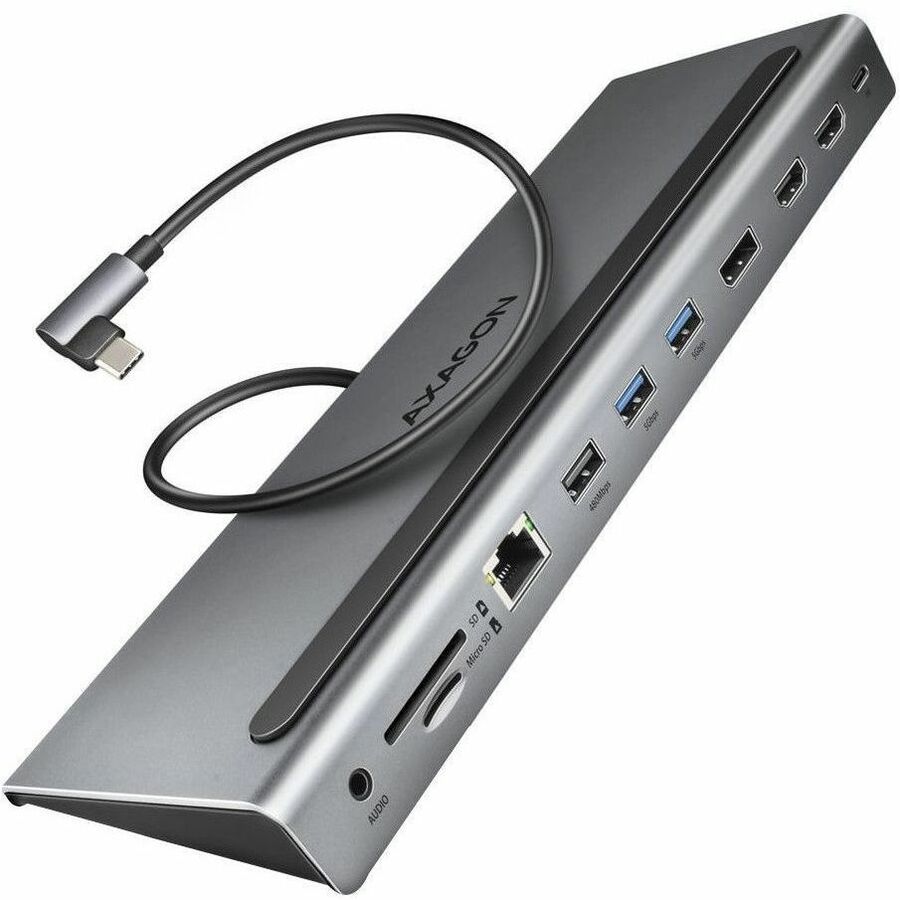

The robust aluminum body ensures mechanical resistance and quality cooling of the docking station. The wedge shape of the hub encourages its use as a laptop pad for better cooling and ergonomic positioning. Also, the included USB-C cable is designed to use the hub as a laptop pad, the optimal length of 40 cm together with the curved connector allows it to be almost entirely hidden under the laptop and contribute to the impression of a clean desk. The USB-C cable is detachable and can be replaced with a longer cable if needed.

Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running.



Product Type Docking Station
Technical Information
Connectivity Technology Wired
Charging Capability Yes
Supported Resolutions
  • 4096 x 2160
  • 2560 x 1440
  • 1920 x 1080
Screen Mode Supported
  • 4K @30Hz
  • 4K @ 60Hz
  • 2K @ 144Hz
  • FHD @ 240Hz
  • 4K UHD
  • 4K
  • WQHD @ 144Hz
  • 2K @ 165Hz
  • WQHD @ 165Hz
  • FHD @ 144Hz
Memory Card Reader Yes
Management Features Wake-on-LAN
Memory Card Supported
  • SD
  • Micro Size MultiMediaCard (MMC)
  • SDXC
  • SDHC
  • microSD
  • microSDHC
  • microSDXC
  • TransFlash
  • MultiMediaCard (MMC)
  • miniSD
  • Embedded MultiMediaCard (eMMC)
  • MMCmobile
  • Reduced Size MultiMediaCard (MMC)
Device Supported
  • Notebook
  • Smartphone
  • Desktop PC
  • TV
  • Mobile Device
  • iPad
  • Tablet PC
  • Monitor
  • iPhone
  • Card Reader
  • Headphone
  • Microphone
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Host Interface USB 3.2 (Gen 1) Type C
USB Type-C Yes
USB Type-C Detail 1 x Power Delivery port (power only), USB-C female connector
USB Type-A Yes
Network (RJ-45) Yes
DisplayPort Yes
Headphone/Microphone Combo Port Yes
HDMI Yes
USB Power Delivery 100W
Software
Operating System Supported
  • Windows 10
  • Windows 11
  • macOS
  • Linux
  • Android
  • ChromeOS
Physical Characteristics
Form Factor Desktop
Height 256 mm
Width 90 mm
Depth 23 mm
Weight (Approximate) 317 g
Miscellaneous
Package Contents
  • HMC-4KX3 USB-C 5Gbps Triple 4K DIsplay 11in1 Hub
  • USB-C Cable 40 cm Long
  • Multilingual Manual
Environmental Compliance
  • Restriction of Hazardous Substances (RoHS)
  • Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 24 Month
