AXAGON HMC-7HX2 USB 3.2 (Gen 1) Type C Docking Station for Notebook, Computer, Smartphone, TV, Flash Drive, Projector - Charging Capability - 2 Displays Supported - 4K @ 60Hz, FHD @ 240Hz, 2K @ 144Hz - 4096 x 2160, 2560 x 1440, 1920 x 1080 - 4 x USB Ports - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - HDMI - Wired - Gigabit Ethernet - Windows 10, Windows 11, macOS, iPadOS - 100W

Our Product No :   54868

MPN Number :   HMC-7HX2

Manufacturer :  AXAGON

Model No :   HMC-7HX2

images

STOCK 2

General Information
Manufacturer AXAGON
Manufacturer Part Number HMC-7HX2
Manufacturer Website Address www.axago.cz
Brand Name AXAGON
Product Model HMC-7HX2
Product Name HMC-7HX2 USB-C 5Gbps DUAL 4K DISPLAY 7in1 Hub
Marketing Information

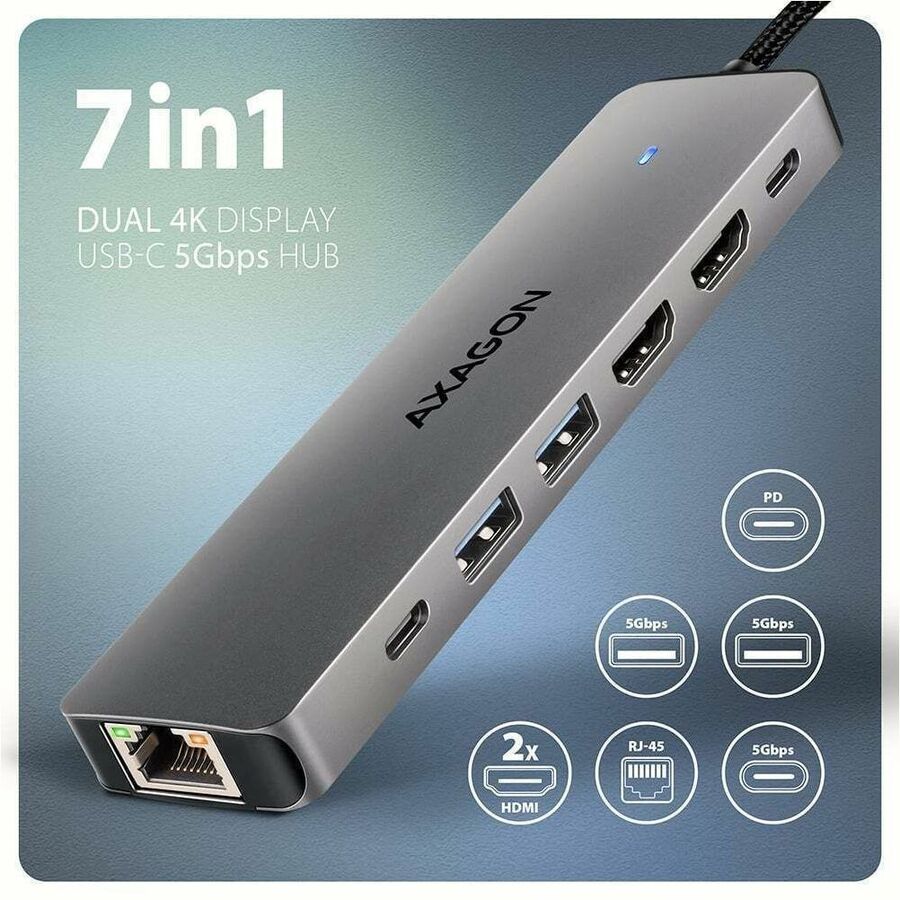

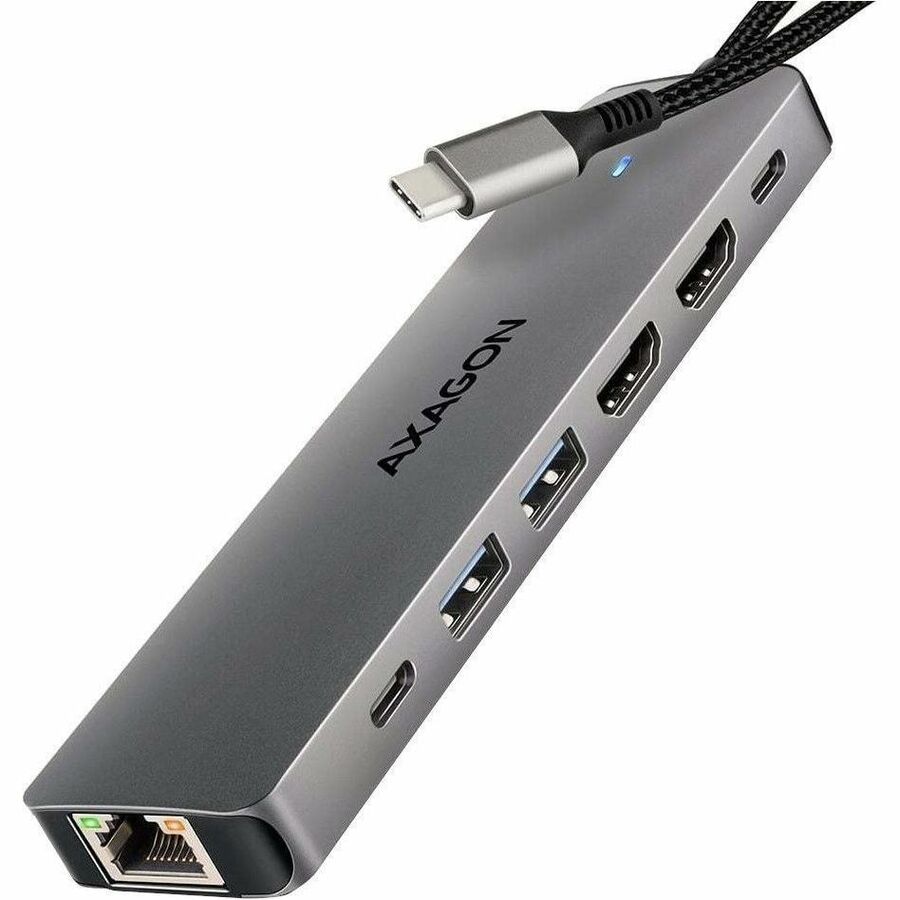

The multi-port USB-C 5Gbps AXAGON HMC-7HX2 DUAL 4K DISPLAY 7in1 hub expands your laptop, computer or phone with seven ports. Connect your laptop to the hub via a 15 cm long USB-C cable. You immediately have a connection for two 4K monitors, three USB devices, and an RJ-45 connector for a Gigabit Ethernet network. You also get the possibility to supply laptop using Power Delivery technology at the same time. The port replicator will provide you with a simple and compact 7-in-1 docking station for modern laptops.

The USB hub offers three USB 5Gbps outputs, two with standard USB-A and a third with USB-C data connector. Transfer rate is up to 5Gb/s thanks to USB 3.2 Gen 1 interface. The hub can permanently connect several external drives simultaneously and also allows charging of phones and tablets with up to 1.5A/5V current. From the hub, you can easily charge e.g. Android smartphone, Apple iPhone, Apple iPad etc.

Another USB-C connector is reserved only for charging phones or laptops using Power Delivery 3.0 technology with up to 100W of power. Connect a suitable USB-C Power Delivery charger into the hub and connect the hub to a laptop that supports Power Delivery. This saves one USB-C port.

Two HDMI outputs allow you to connect external monitors, TVs or projectors with up to 4K/60Hz Ultra HD resolution, even when two monitors are connected at the same time. Other popular resolutions are also supported, such as 2K/120Hz Quad HD or 1080p/240Hz Full HD and multi-channel audio transmission. Thanks to HDR support, you can enjoy a significantly expanded range of colours and contrasts without limitations.

Gigabit network card extends your computer by a fast and stable network connection, adds the missing RJ-45 network connector or another network card.

The compact aluminium body not only looks great, but also provides mechanical durability and passive cooling. USB-C hub is an ideal accessory for laptops without USB-A connectors and video output. You can use your current USB peripherals without having to purchase new ones. Thanks to the Plug and Play and Hot Plug functions, connecting the hub itself is very simple without complicated installation, and peripherals can also be easily connected and disconnected while the computer is running.

For the hub to function properly, your laptop's USB-C port must support video output (DisplayPort Alternate Mode or Thunderbolt 3, 4 and above) and Power Delivery powered.

The hub can easily connect to phones with a USB-C connector. For example, you can connect a flash drive, keyboard, mouse, display, TV or projector to the phone.

Product Type Docking Station
Technical Information
Connectivity Technology Wired
Charging Capability Yes
Supported Resolutions
  • 4096 x 2160
  • 2560 x 1440
  • 1920 x 1080
Screen Mode Supported
  • 4K @ 60Hz
  • FHD @ 240Hz
  • 2K @ 144Hz
Device Supported
  • Notebook
  • Computer
  • Smartphone
  • TV
  • Monitor
  • A/V Receiver
  • Hard Drive
  • Flash Drive
  • Mouse
  • Tablet
  • Projector
  • Keyboard
  • iPhone
  • iPad
Network & Communication
Ethernet Technology Gigabit Ethernet
Interfaces/Ports
Host Interface USB 3.2 (Gen 1) Type C
USB Type-C Yes
USB Type-C Detail 1 x USB 5Gbps port USB-C female connector, USB Power Delivery 3.0 - 100W port USB-C female connector.
USB Type-A Yes
Network (RJ-45) Yes
HDMI Yes
USB Power Delivery 100W
Software
Operating System Supported
  • Windows 10
  • Windows 11
  • macOS
  • iPadOS
  • iOS
  • Linux
  • ChromeOS
  • Android
Physical Characteristics
Height 13 mm
Width 134 mm
Depth 34 mm
Weight (Approximate) 59 g
Miscellaneous
Package Contents
  • HMC-7HX2 USB-C 5Gbps DUAL 4K DISPLAY 7in1 Hub
  • Multilingual Manual
Compatibility

Apple Products:

  • iPhone
  • iPad
Warranty
Limited Warranty 24 Month
