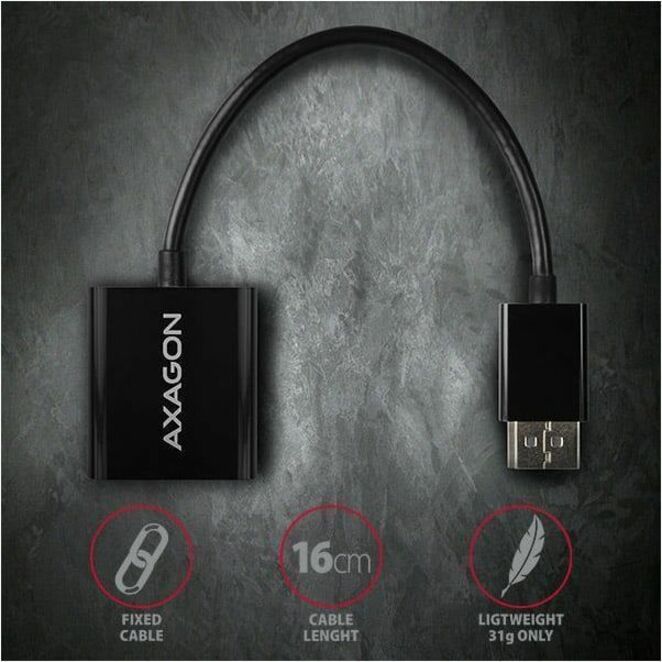

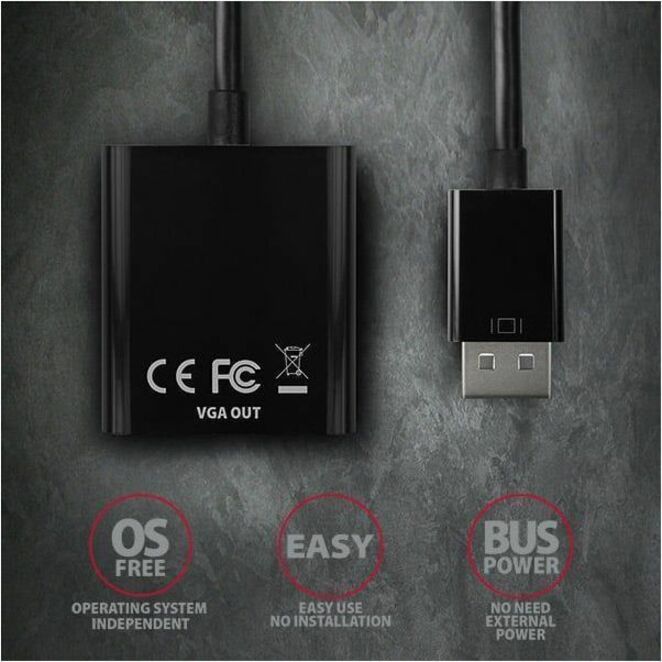

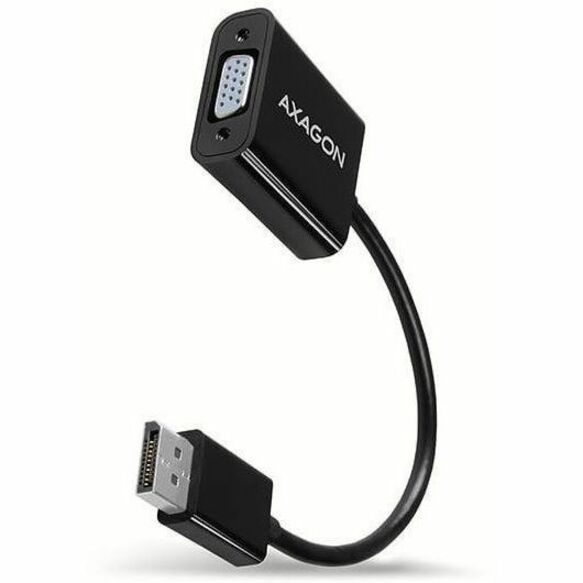

AXAGON Video Adapter - 1 x Displayport 1.1a Digital Audio/Video - Male - 1 x 15-pin DB-15 VGA - Female - 1920 x 1200 Supported

Our Product No :   54896

MPN Number :   RVD-VGN

Manufacturer :  AXAGON

images

Pre Order

General Information
Manufacturer AXAGON
Manufacturer Part Number RVD-VGN
Manufacturer Website Address www.axago.cz
Brand Name AXAGON
Product Name DP > VGA adapter
Marketing Information

DisplayPort -> VGA active adapter AXAGON RVD-VGN for connecting an older VGA monitor/TV/ projector to a computer or other device with Display Port output.

Without any installation or setup, the hardware converter ensures image transfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.

The reduction is only one-way, i.e. DP to VGA converter, not the opposite way.

Input:

  • DisplayPort 1.1a digital interface

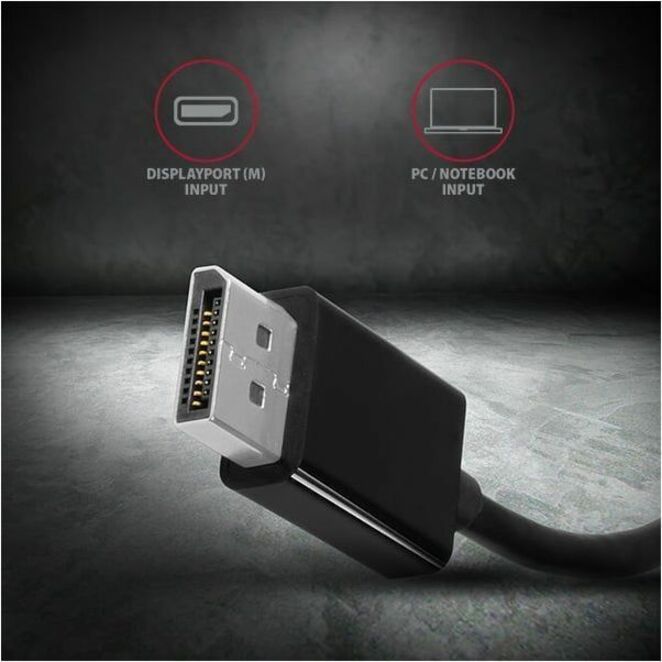

  • DisplayPort (M) male connector

Output:

  • Analog VGA interface
  • D-Sub 15-pin (F) female connector

Supported resolutions:

  • max. 1920x1200 (16:10) WUXGA
  • 1920 x 1080 (16:9) Full HD/1080p
  • 1680 x 1050 (16:10) WSXGA+
  • 1600 x 1200 (4:3) UXGA
  • 1600 x 900 (16:9) HD+
  • 1440 x 900 (16:10) WXGA+
  • 1400 x 1050 (4:3) SXGA+
  • 1366 x 768 (16:9) WXGA
  • 1360 x 768
  • 1280 x 1024 (5:4) SXGA
  • 1280 x 960 (4:3) SXGA-
  • 1280 x 800 (16:10) WXGA
  • 1280 x 768 (5:3) WXGA
  • 1280 x 720 (16:9) HD/WXGA/720p
  • 1280 x 600
  • 1152 x 864 (4:3) XGA+
  • 1024 x 768 (4:3) XGA
  • 800 x 600 (4:3) SVGA
  • 640 x 480 (4:3) VGA
  • 576i/576p PAL
  • 480i/480p NTSC
Packing Box
Product Type Video Adapter
Technical Information
Adapter Type DisplayPort/VGA
Connector Type on First End DisplayPort 1.1a Digital Audio/Video - Male
Connector on First End Details 1 x Displayport 1.1a Digital Audio/Video - Male
Connector Type on Second End DB-15 VGA - Female
Connector on Second End Details 1 x 15-pin DB-15 VGA - Female
Maximum Resolution Supported 1920 x 1200
Features
  • Active
  • Lightweight
Physical Characteristics
Weight (Approximate) 31 g
Miscellaneous
Package Contents
  • DP > VGA adapter
  • Installation manual
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 24 Month
