AXAGON Video Adapter - 1 x HDMI 1.4b Type A Digital Audio/Video - Male - 1 x 15-Pin D-sub HD-15 VGA - Female - 1920 x 1200 Supported

Our Product No :   54898

MPN Number :   RVH-VGN

Manufacturer :  AXAGON

images

Pre Order

General Information
Manufacturer AXAGON
Manufacturer Part Number RVH-VGN
Manufacturer Website Address www.axago.cz
Brand Name AXAGON
Product Name RVH-VGN HDMI > VGA Adapter
Marketing Information

HDMI -> VGA active adapter AXAGON RVH-VGN for connecting an older VGA monitor / TV / projector to a computer or other device with HDMI output. It can also be used with set-top boxes or Xbox and PlayStation consoles.

Without any installation or setup, the hardware converter ensures image transfer up to resolution 1920x1200 (WUXGA) at 60Hz refresh rate.

The innovative design of the adapter electronics ensures high-quality clear and sharp images.

The reduction is only one-way, i.e. HDMI to VGA converter, not the opposite way.

Input:

  • HDMI v1.4b digital interface
  • HDMI A (M) male

Output:

  • Analog VGA interface

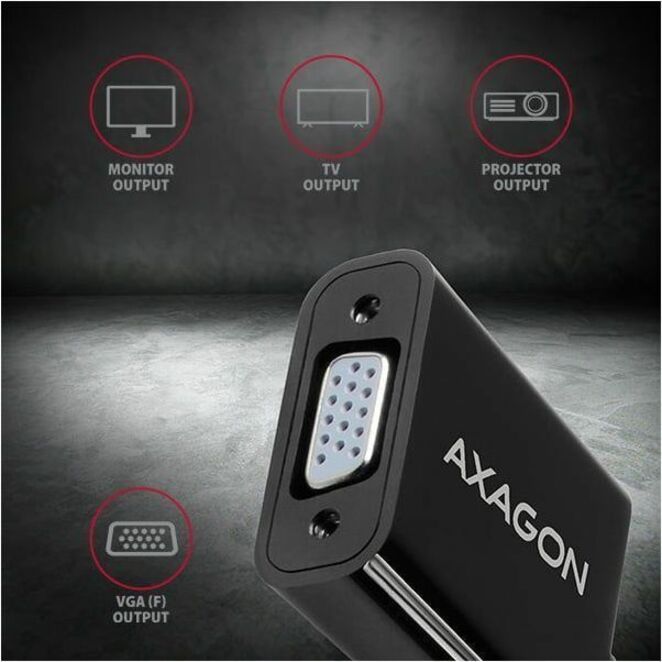

  • D-Sub 15-pin (F) female connector

Supported resolutions:

  • max. 1920x1200 (16:10) WUXGA
  • 1920 x 1080 (16:9) Full HD/1080p
  • 1680 x 1050 (16:10) WSXGA+
  • 1600 x 1200 (4:3) UXGA
  • 1600 x 900 (16:9) HD+
  • 1440 x 900 (16:10) WXGA+
  • 1400 x 1050 (4:3) SXGA+
  • 1366 x 768 (16:9) WXGA
  • 1360 x 768
  • 1280 x 1024 (5:4) SXGA
  • 1280 x 960 (4:3) SXGA-
  • 1280 x 800 (16:10) WXGA
  • 1280 x 768 (5:3) WXGA
  • 1280 x 720 (16:9) HD/WXGA/720p
  • 1280 x 600
  • 1152 x 864 (4:3) XGA+
  • 1024 x 768 (4:3) XGA
  • 800 x 600 (4:3) SVGA
  • 640 x 480 (4:3) VGA
  • 576i/576p PAL
  • 480i/480p NTSC
  • Note: The resolution depends on the monitor / TV / projector and graphic adapter parameters.
Packing Box
Product Type Video Adapter
Technical Information
Adapter Type HDMI/VGA
Connector Type on First End HDMI 1.4b Type A Digital Audio/Video
Connector on First End Details 1 x HDMI 1.4b Type A Digital Audio/Video - Male
Connector Type on Second End HD-15 VGA - Female
Connector on Second End Details 1 x 15-Pin D-sub HD-15 VGA - Female
Maximum Resolution Supported 1920 x 1200
Features
  • Active
  • HDCP 1.4
  • Lightweight
Physical Characteristics

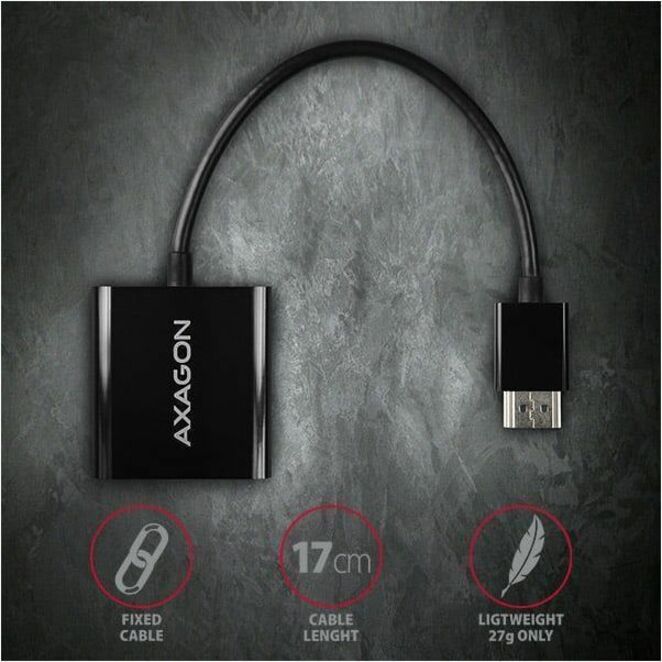

Weight (Approximate) 27 g
Miscellaneous
Package Contents
  • RVH-VGN HDMI > VGA Adapter
  • Printed Multilingual Manual
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)
Warranty
Limited Warranty 24 Month
