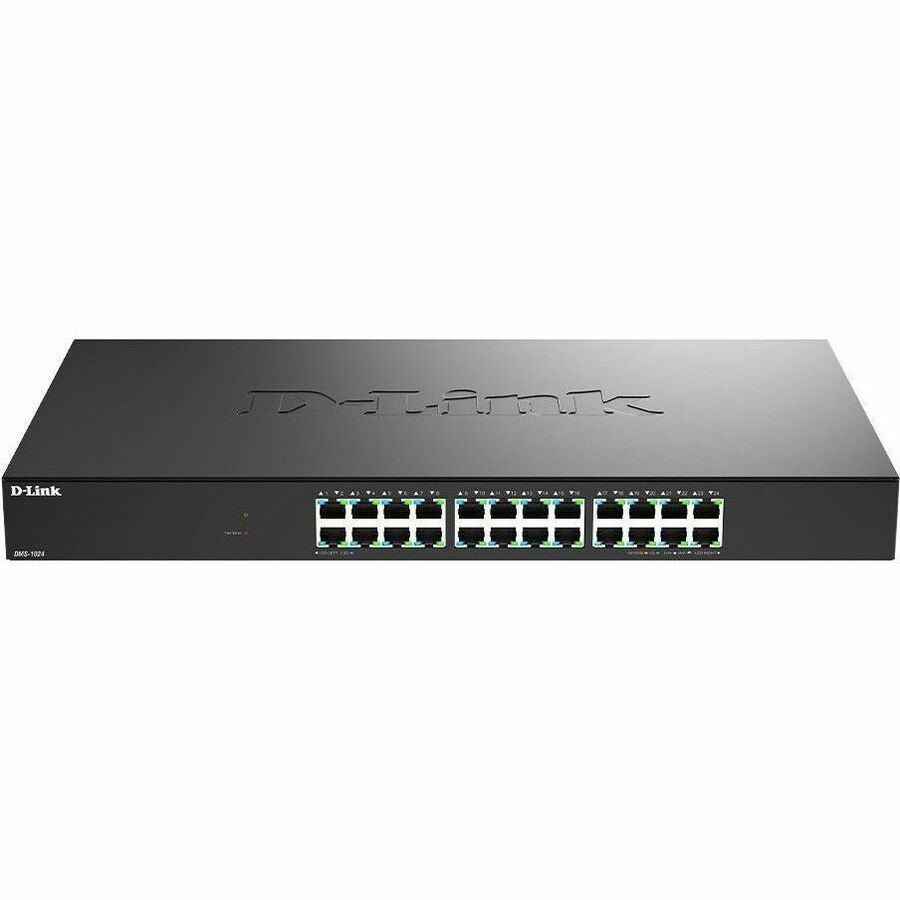

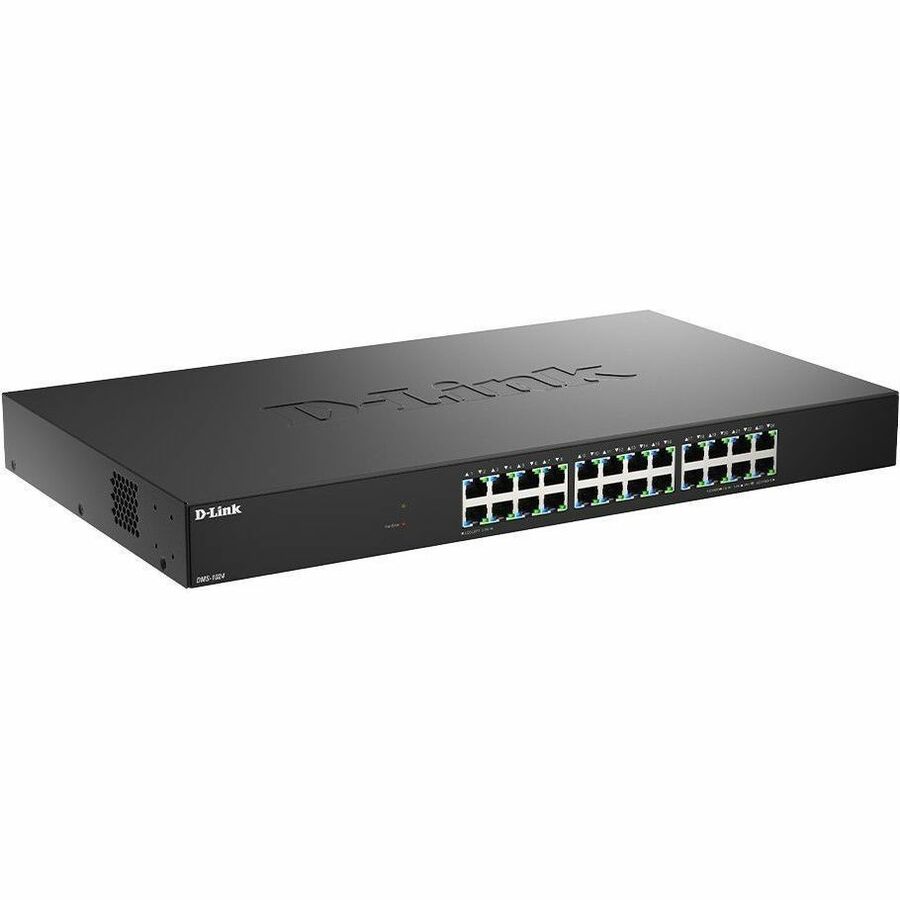

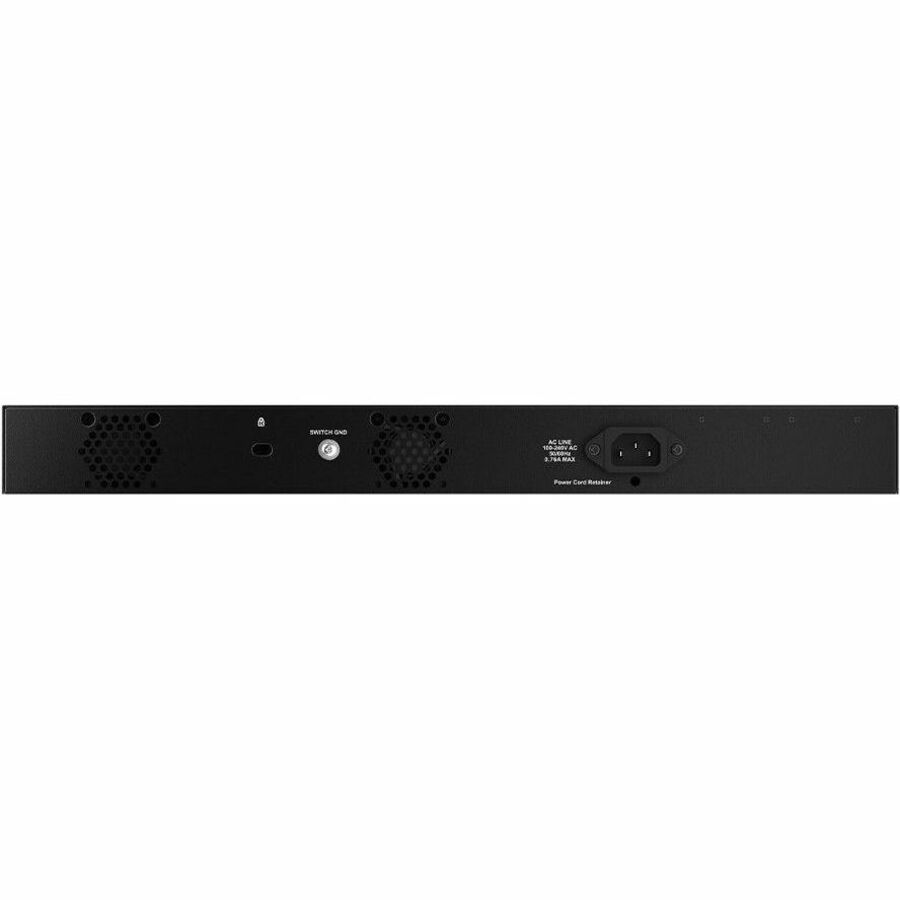

D-Link DMS-1024 24 Ports Ethernet Switch - 2.5 Gigabit Ethernet - 2.5GBase-T - Black - 2 Layer Supported - Twisted Pair - Compact, Rack-mountable, Desktop

MPN Number :   DMS-1024/B

Manufacturer :  Dlink

Model No :   DMS-1024

images

Pre Order

General Information
ManufacturerD-Link Systems, Inc
Manufacturer Part NumberDMS-1024/B
Manufacturer Website Addresshttp://www.dlink.co.uk
Brand NameD-Link
Product ModelDMS-1024
Marketing Information

Plug & Play

No complex configurations required for fast and easy network connectivity

2.5G Ports

Multi-Gigabit ports for high data rate transmission

Multicast Optimisation

IGMP snooping feature prevents network flooding

Rugged Design

Compact metal casing improves device durability

Low-Noise Operation

Smart Fan enhances device cooling efficiently

Optimised Performance

QoS prioritises traffic, enhancing user experience |

2.5G Ports for Faster Data Rates

New generation Wi-Fi delivers ultra-fast speeds with low latency and standard Gigabit Ethernet can become a bottleneck. 2.5G Ethernet offers 2.5x the bandwidth without new cabling, enabling significantly faster data rates for Wi-Fi APs, smoother 4K/8K streaming, HD surveillance, AR/VR gaming, NAS, and many more applications in data-intensive environments.

Smarter Multicast, Smoother Performance

The DMS-1024 enables IGMP Snooping to enhance network efficiency by intelligently managing multicast traffic, ensuring data reaches only the devices that need it. This reduces bandwidth congestion, improves video streaming and VoIP performance, and optimises IPTV, surveillance, and enterprise networks.

Prioritise Traffic for Optimised Performance

With the DMS-1024, you can effortlessly manage your network traffic with the 802.1p Quality of Service (QoS) feature. The Switch automatically organises and prioritises time-sensitive and critical data for efficient delivery, enabling buffer-free video streaming as well as jitter-free video and voice calls.

Eco-Friendly and Cost Saving

The DMS-1024 optimises energy use and cuts operating costs with intelligent power management that reduces consumption during idle periods. The Smart Fan design enables variable speed and low-noise operation while minimising expenses. Experience a cost-effective, eco-friendly solution that saves money and promotes sustainability.

Connection Diagram

The cost-effective DMS-1024 not only delivers plug-and-play 2.5G connectivity for edge devices, but also offers performance optimisation to help eliminate bottlenecks for applications such as Wi-Fi 6, HD surveillance, 4K/8K streaming, and much more.

Product TypeEthernet Switch
Technical Information
Features
  • Plug and Play
  • Energy Efficient
  • IGMP Snooping
  • Quality of Service (QoS)
  • Kensington Lock Slot (K-slot)
  • Flow Control
  • Built-in Fan
  • LED Indicator
Interfaces/Ports
Total Number of Network Ports24
Network (RJ-45)Yes
Stack PortYes
Port/Expansion Slot Details24 x 2.5 Gigabit Ethernet Network
Media & Performance
Media Type SupportedTwisted Pair
Ethernet Technology2.5 Gigabit Ethernet
Network Technology2.5GBase-T
Maximum Data Transfer Rate320 MB/s
Network & Communication
Networking Standards
  • IEEE 802.1p
  • IEEE 802.3az
  • IEEE 802.3x
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
Management & Protocols
ManageableNo
Power Description
Input Voltage
  • 120 V AC
  • 230 V AC
Power Source
  • Power Supply
  • AC
  • DC
Physical Characteristics
Product ColorBlack
Product MaterialMetal
Form Factor
  • Compact
  • Rack-mountable
  • Desktop
Height44 mm
Width440 mm
Depth250 mm
Weight (Approximate)3.42 kg
Miscellaneous
Environmental ComplianceRestriction of Hazardous Substances (RoHS)
