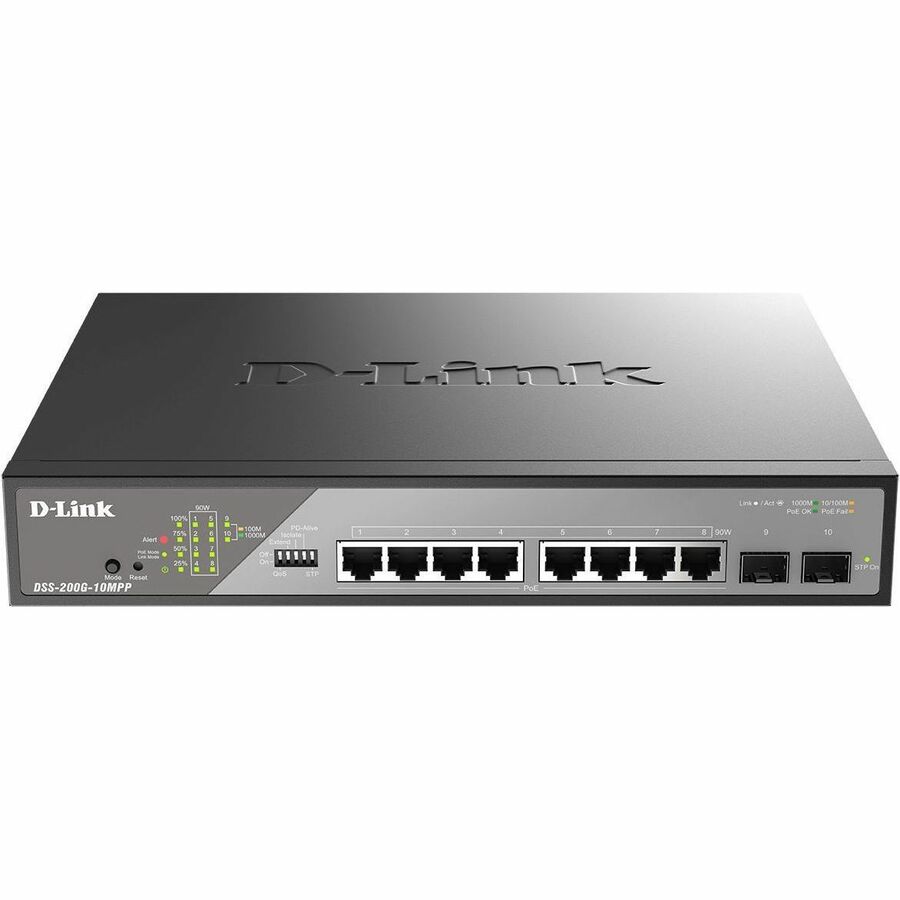

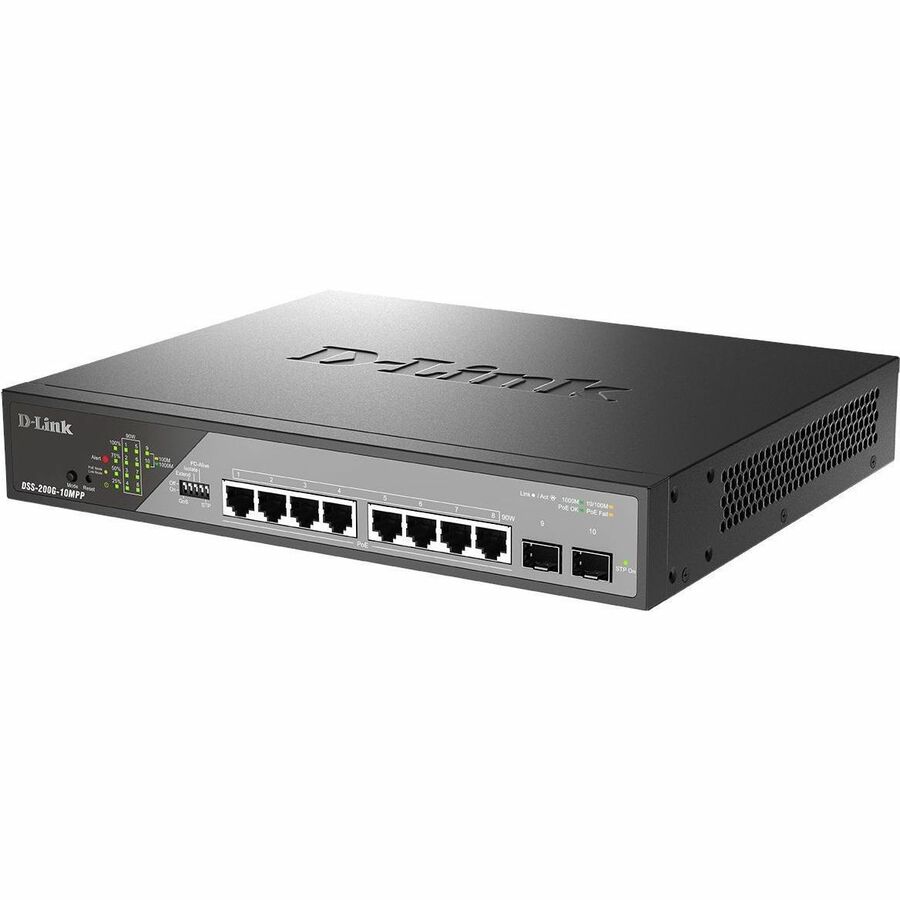

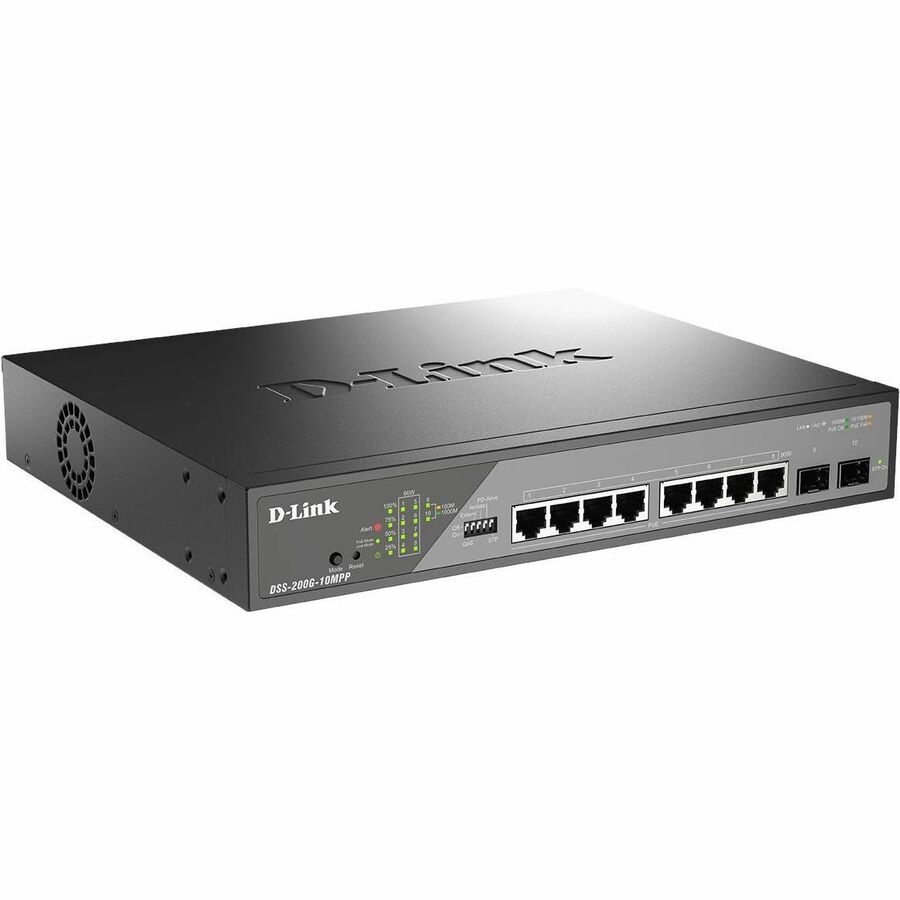

D-Link DSS-200G 8 Ports Manageable Ethernet Switch - Fast Ethernet, Gigabit Ethernet - 10/100/1000Base-T, 1000Base-X - 2 SFP Slots - 267.50 W Power Consumption - 242 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports - 1U - Rack-mountable, Desktop - Lifetime Limited Warranty

MPN Number :   DSS-200G-10MPP/B

Manufacturer :  Dlink

Model No :   DSP-411

images

Pre Order

General Information
ManufacturerD-Link Systems, Inc
Manufacturer Part NumberDSS200G10MPPB
Manufacturer Website Addresshttp://www.dlink.co.uk
Brand NameD-Link
Product SeriesDSS-200G
Product NameDSS-200G 8-Port Ethernet Switch
Marketing Information

The DSS-200G Series is a range of switches designed to meet the surveillance requirements of small, medium, and enterprise businesses. Support for high-powered Pan Tilt Zoom (PTZ) cameras, automatic Surveillance VLAN, and 6 kV surge protection make the DSS-200G Series ideal for IP surveillance deployments. A redesigned interface, a range of diagnostic and troubleshooting tools, and energy efficient technologies provide a flexible solution to your surveillance requirements.

Easy to Deploy

An interactive setup wizard removes the complexity from installing the switch for the first time. It allows you to choose the web interface mode (Standard or Surveillance), the IP address allocation method (static or DHCP), and the administrator user name and password. This completes the initial setup of the switch and automatically configures features such as Loop Detection, SNMP and Surveillance VLAN. An informative quick start guide shows you how to use the network diagram, and a network overview is displayed on the next page. D-Link and 3rd party devices are automatically detected and shown on the network overview page for easy administration.

Surveillance Traffic Optimization

The DSS-200G Series supports the automatic Surveillance VLAN feature. This automatically detects surveillance devices and puts them into the Surveillance VLAN, segmenting their traffic from the rest of the network. The feature enhances the security of the data and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware and reducing maintenance costs.

Intuitive Web Interface

A redesigned Surveillance interface makes surveillance features more accessible than ever. The choice between Standard and Surveillance modes can be made during switch setup, allowing the user to choose the interface that best suits their requirements. A network overview shows which devices are connected to which ports, and ONVIF device support allows the switch to recognize both D-Link and third party IP cameras and Network Video Recorders (NVRs). With monitoring, management, and troubleshooting tools built into a single interface, the DSS200G Series provides everything you need to manage your surveillance network.


Product TypeEthernet Switch
Interfaces/Ports
Network (RJ-45)Yes
Uplink PortYes
Port/Expansion Slot Details
  • 8 x 10/100/1000BASE-T Mbps PoE Ports
  • 2 x Gigabit SFP Expansion Slot
Media & Performance
Media Type Supported
  • Twisted Pair
  • Optical Fiber
Ethernet Technology
  • Fast Ethernet
  • Gigabit Ethernet
Network Technology
  • 10/100/1000Base-T
  • 1000Base-X
Maximum Data Transfer Rate125 MB/s
I/O Expansions
Total Number of Expansion Slots2.0
Expansion Slot TypeSFP
Network & Communication
Networking Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3bt
  • IEEE 802.3x
  • IEEE 802.3az
Management & Protocols
ManageableYes
Power Description
PoE (RJ-45) PortYes
PoE Budget242 W
Input Voltage
  • 120 V AC
  • 230 V AC
Power Source
  • Power Supply
  • PoE
Power Consumption267.50 W
Physical Characteristics
Compatible Rack Unit1U
Form Factor
  • Rack-mountable
  • Desktop
Height43.9 mm
Width279.9 mm
Depth229.9 mm
Weight (Approximate)2.05 kg
Miscellaneous
Package Contents
  • DSS-200G 8-Port Ethernet Switch
  • Rack Mounting Kit
Warranty
Limited WarrantyLifetime
