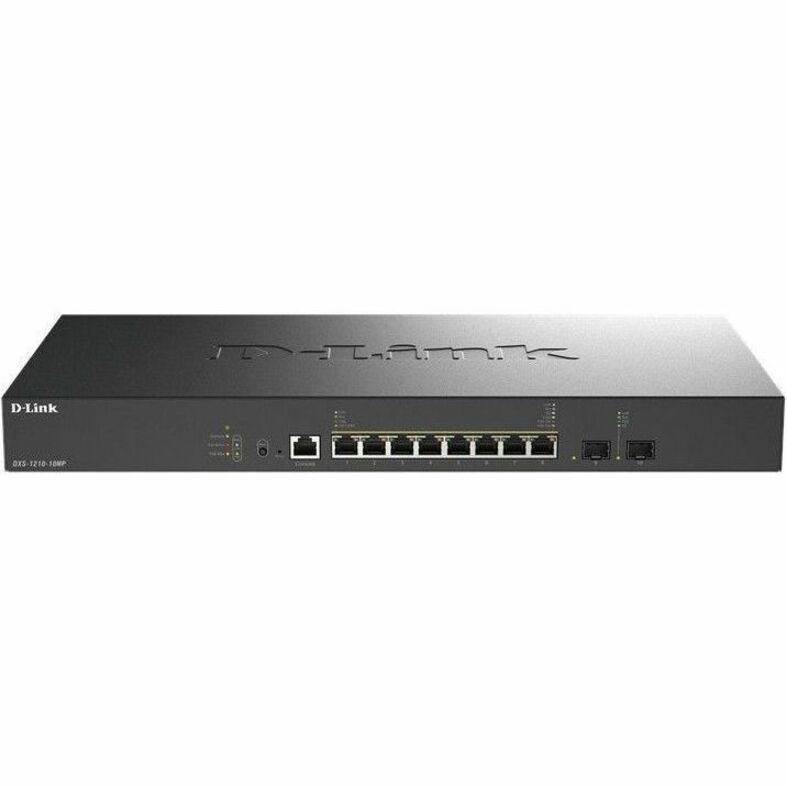

D-Link DXS-1210 DXS-1210-10MP 8 Ports Manageable Ethernet Switch - Gigabit Ethernet, 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet - 100/1000Base-T, 2.5GBase-T, 5GBase-T, 10GBase-T, 10GBase-X - 3 Layer Supported - 453.90 W Power Consumption - 370 W PoE Budget - Twisted Pair, Optical Fiber - PoE Ports

MPN Number :   DXS-1210-10MP/B

Manufacturer :  Dlink

Model No :   DXS-1210-10MP

images

Pre Order

General Information
ManufacturerD-Link Systems, Inc
Manufacturer Part NumberDXS-1210-10MP/B
Manufacturer Website Addresshttp://www.dlink.co.uk
Brand NameD-Link
Product SeriesDXS-1210
Product ModelDXS-1210-10MP
Product NameDXS-1210-10MP Ethernet Switch
Marketing Information

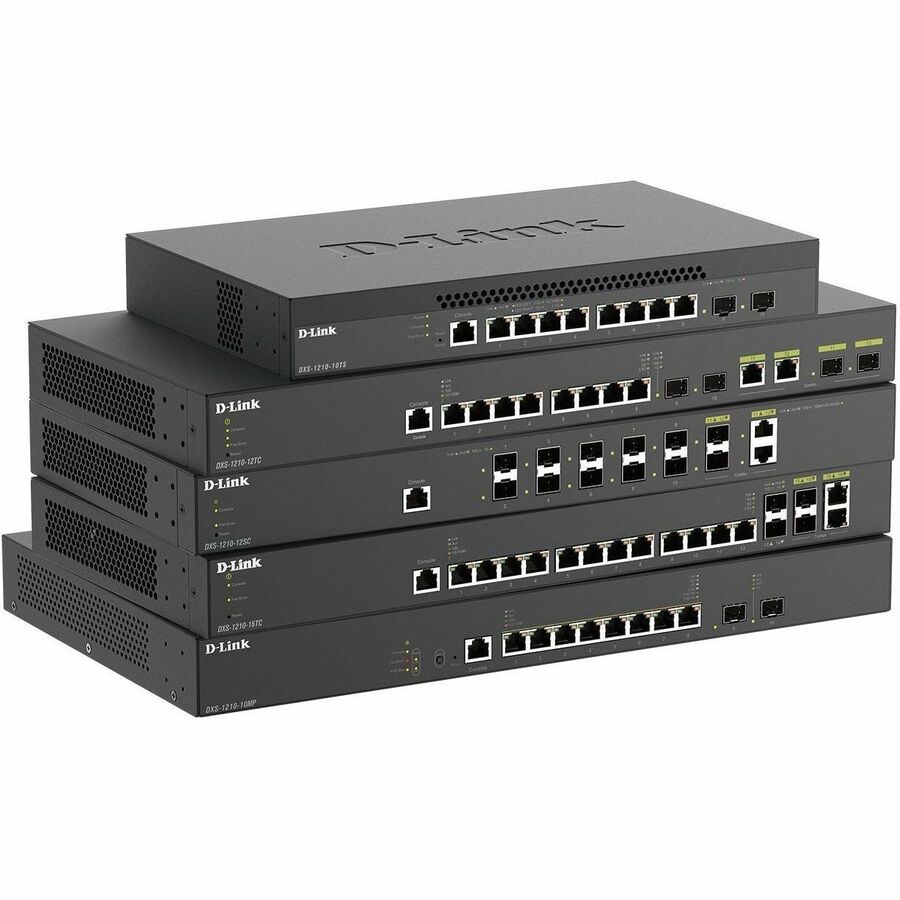

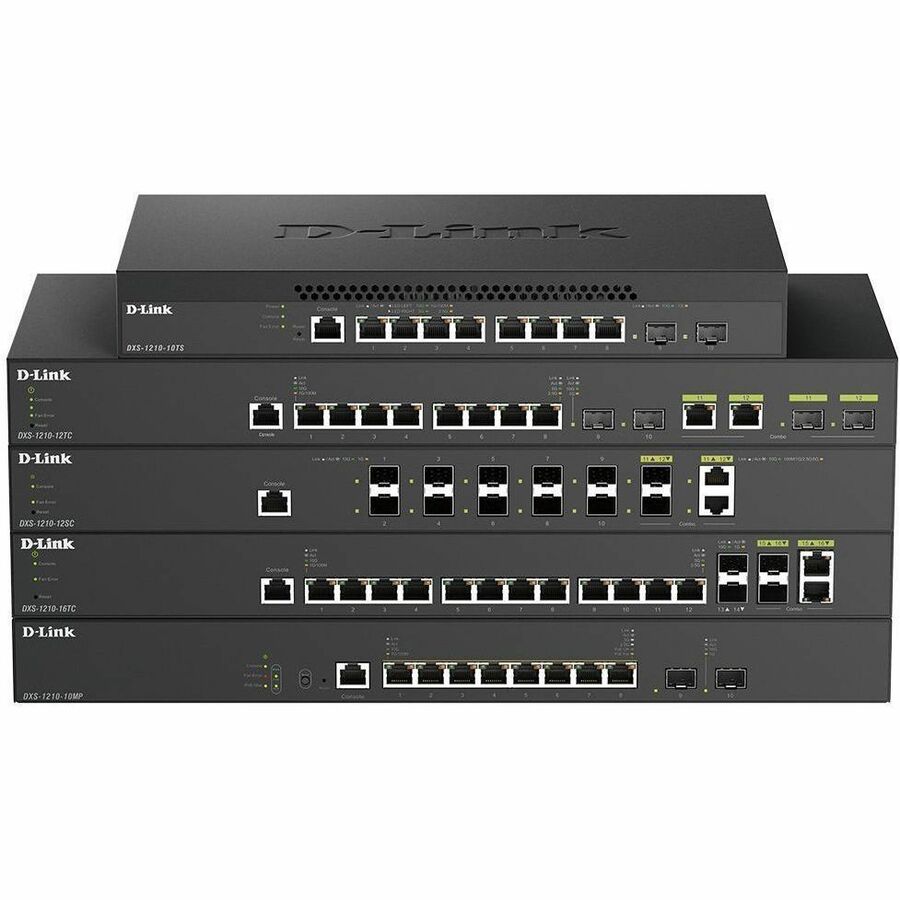

10 Gigabit/Multi-Gigabit Ethernet Smart Managed Switches

The D-Link DXS-1210 Series 10 Gigabit/Multi-Gigabit Ethernet Smart Managed Switches are a cost-effective 10 Gigabit switch series capable of servicing a range of network needs in any business. Supporting 10GBASE-T/SFP+ combo ports, this series provides connection flexibility across a network allowing easier network integration. The support for IEEE 802.3bt on 10GBASE-T ports of DXS-1210-10MP takes it one step further to facilitate surveillance infrastructure and integrated multimedia solutions with the seriess dynamic and automated approach to provisioning IP telephony and surveillance equipment. The Power over Ethernet (PoE) combined with advanced features such as VLAN and QoS makes this series a great aid to augmenting your existing network with business-grade communication capability or building a new corporate branch or organization network with the required performance and security.

Energy Efficient

By incorporating D-Link Green technology, this series of switches is capable of saving power without sacrificing operational performance or functionality. The switches feature built-in smart fans with internal heat sensors that monitor and detect temperature changes and react accordingly by utilizing different fan speeds for different temperatures. At lower temperatures, the fans will run slower, reducing the switchs power consumption and noise. Other features such as IEEE 802.3az (EEE), automatic power-off on RJ45 port according to link status, time-based PoE, LED shutoff, and system hibernation demonstrate the efficient use of energy on these switches. All these features are built on a modern chipset designed for power efficiency.

Extensive Management and Layer 2 Features

The DXS-1210 Series comes with a complete lineup of L2 features, includes port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down difficult to diagnose switching loops. The cable diagnostic feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing hassle-free diagnostics and maintenance. |

Features

10 Gigabit PoE/SFP+ ports

  • Selection from different combinations of 100M/1G/2.5G/5G/10G Ethernet and SFP+ ports
  • 10G Ethernet ports supporting IEEE 802.3bt (PoE++) supply 60W per port with 6kV surge protection on PoE model (DXS-1210-10MP)

Green Technology

  • Power saving via the following features:
  • Energy Efficiency Ethernet (EEE)
  • LED Shutoff
  • Port Shutoff
  • System Hibernation

Security Features

  • Access Control List
  • D-Link Safeguard Engine
Product TypeEthernet Switch
Technical Information
Features
  • Energy Efficient
  • Surge Protection
  • Safeguard Engine
  • Access Control List
  • Broadcast Storm Control
  • Remote Monitoring (RMON)
  • Support Dual Image
Interfaces/Ports
Network (RJ-45)Yes
Uplink PortYes
Port/Expansion Slot Details
  • 8 x 1/2.5/5/10BASE-T Gigabit Ethernet PoE++ RJ-45 Network Port
  • 2 x 10 Gigabit Ethernet SFP+ Expansion Slot
  • 1 x RJ-45 Console Port
Media & Performance
Media Type Supported
  • Twisted Pair
  • Optical Fiber
Ethernet Technology
  • Gigabit Ethernet
  • 2.5 Gigabit Ethernet
  • 5 Gigabit Ethernet
  • 10 Gigabit Ethernet
Network Technology
  • 100/1000Base-T
  • 2.5GBase-T
  • 5GBase-T
  • 10GBase-T
  • 10GBase-X
Maximum Data Transfer Rate1.25 GB/s
I/O Expansions
Expansion Slot TypeSFP+
Network & Communication
Networking Standards
  • IEEE 802.3bt
  • IEEE 802.1x
  • IEEE 802.3af
  • IEEE 802.3at
  • IEEE 802.3u
  • IEEE 802.3ab
  • IEEE 802.3bz
  • IEEE 802.3an
  • IEEE 802.3ae
  • IEEE 802.3z
  • IEEE 802.3az
  • IEEE 802.1D
  • IEEE 802.1w
  • IEEE 802.1s
  • IEEE 802.3x
  • IEEE 802.3ad
  • IEEE 802.1Q
  • IEEE 802.1p
  • IEEE 802.3
Management & Protocols
ManageableYes
Switch Management TypeSmart Managed
Power Description
PoE (RJ-45) PortYes
PoE Budget370 W
Input Voltage
  • 120 V AC
  • 230 V AC
Power Source
  • Power Supply
  • AC
Power Consumption453.90 W
Physical Characteristics
Height44 mm
Width250 mm
Length440 mm
Weight (Approximate)3.70 kg
